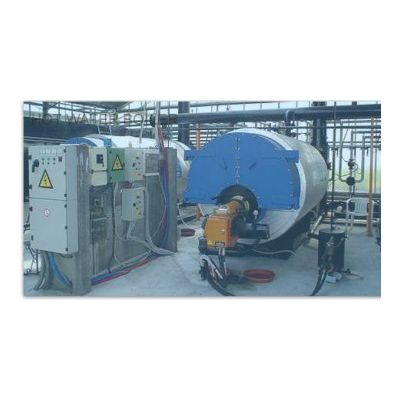

EAGLE - Model KHW -Hot Water and Superheated Water Boilers
Hot Water and Superheated Water Boilers from 250 kW to 50 MW. Horizontal Flue gas Boiler type SCOTCH with (3 x) Independent passes. Single or Twin Full Corrugation Furnace. Full wet – immersed reverse chamber-box. Curved – Flanged Boiler & Box Plates
Main advantages
High efficiency up to 93 %
Higher efficiency up to 97 % by inducting a economizer
Low emissions due to large corrugated furnace and proper selection of burner
The design of three independent design – large corrugated furnace and the wet back box of the KHW series Hot water boiler enhance reliability and a lifetime for the boiler
Medium:
Hot or Superheated Water
Capacity:
300 KW to 50 MW
Design Pressure:
up to 40 bar / up to 350 oC
Max. Temperature:
Saturated or Superheated
Type of fuel:
Heavy Fuel Oil
Light fuel Oil
Natural Gas
LPG
Biogas
Biomass – Solid [in combination with combustion chamber see Biomass systems]
Design –Approval
The KHW series Hot water boiler is designed according to new PED/EN regulation and approved by Lloyds Register of shipping Holland
ASME upon request
Area of use
Food industry, chemical process ,Finery ,Power plants, hospitals
Warranty
Our company offer a 12 month warranty for 12 months from the day of start up
General Notes
Delivered as a compact unit ready for use
