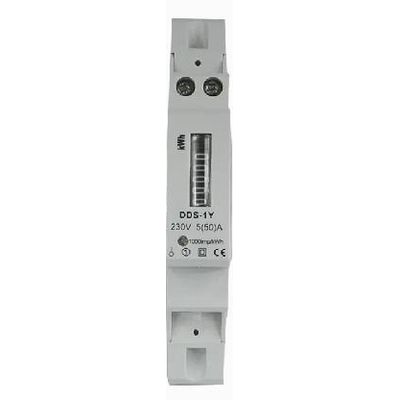

YTL - Model D111001 -Household Simple Single Phase Electric Meter

FromZhejiang Yongtailong Electronic Co.,LTD

It is a simple single phase one module Din-Rail meter, which only have kWh measurement. It is widely used in Sub-metering system. This meter is very popular worldwide. Moreover, it is convenient to install only 0.0907kg and 18mm width.

Most popular related searches

single-phase smart meter

single-phase energy meter

smart energy meter

smart electricity meter

Voltage:230V
Current:5(50)A
Accuracy class:1.0
Standard:IEC62052-11, IEC62053-21
Frequency:50-60Hz
Impulse constant:1000imp/kWh
Display:Counter 5+1 = 99999.9kWh
Power consumption:8VA 0.4W
Starting current:0.004Ib
Temperature range:-20～65℃
Average humidity value of year:75%
Maximal humidity value:95%

A Impulse Output
Material
Case PC+ABS
Terminal Cover PC+ABS
Base Bottom PC+ABS

Voltage 12~27V, current≤27mA, max length of lead:20m
Impulse width=90ms, connect to terminal 20&21
Limits of values: max 60VDC, max 50mA
