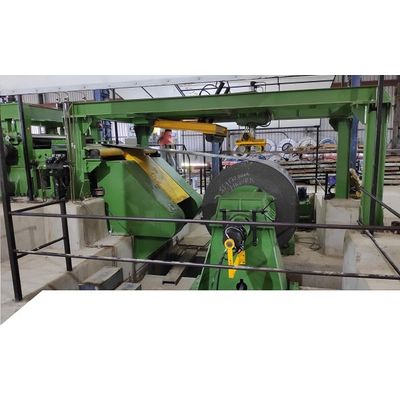

Valgo - HR Cut to Length Line
Valgo Machinery Hot Rolled Cut to Length Line Is For High Quality Finished Product In Heavy Gauge Thickness Coils Like More Then 4mm Thickness Coils Through Uncoiling To Pulling Coil To Leveling And Sharing With Stacking Sheet.
- Coilcar
- Uncoiler
- Feeder Unit
- Leveling Unit
- Shearing Unit
- Chopper For Screap (As Per Your Requirement)
- Convyor Unit
- Stacker
- All Hydralic System
- All Electric System with Plc Based and Computer Controller
We also design customized and special purpose cut to length line as per your requirement, like if you require strachining unit for flattened sheet and shear desired length.
For that we have best team of designing and doing r&d.
With our best service team, you can get any problem solved any time 24/7.
Our valgo machinery is one stop for buying your hot rolled coil processing and coil handling machinery.
Valgo’s hr cut to length line is best for your requirement from best quality machinery to high quality straighting line to stacking material.
| MODEL | VMCTL-650 | VMCTL-650/1250 | VMCTL-1650 | VMCTL-1650/1850 | VMCTL-1650/1850/2000 |
| PROCESSING MATERIAL | Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Pre-Painted Steel, High Carbon Steel, Stainless Steel, Aluminum Steel, etc. | ||||
| PROCESSING SHEET THICKNESS | 0.3~1.5 mm | 0.3 ~ 3.0 mm | 0.3 ~ 3.5mm | 0.5 ~3.5mm | 0.5 ~ 3.5mm |
| PROCESSING SHEET WIDTH | Max 650mm | Max 1250mm | Max 1650mm | Max 1850mm | Max 2000mm |
| COIL WIGHT | ≤10 Tons | ≤15 Ton | ≤30 Ton | ≤30 Ton | Max 30 Ton |
| CUTTING ACCURACY | 0.3mm | 0.3mm | 0.4mm | 0.5mm | 0.5mm |
| LINE SPEED | 10~40m/min | ||||
| CUTTING ACCURACY | Length – ±1.0mm/ Diagonal – ±1.5mm | ||||
| CUTTING RANG | 500~12000mm | ||||
| COIL OD | Φ508mm~φ610mm |
