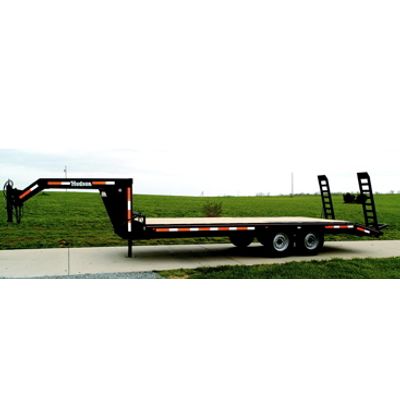

HTMGH - 6 Ton Capacity Medium Duty Gooseneck

Overall Length: 33`

Deck Length: 23` (20` Flat w/ 3` Beavertail)

Overall Width: 96"

Deck Width: 96"

Deck Height: 31"

Beavertail: 3` w/ wood

Ramps: 5` Cleated w/ Spring Assist

Hitch: Adj. 2 5/16" Ball Coupler

Hitch Height: 42" Adjustable

Tongue:  Gooseneck w/ Tool Tray

Axles:  (2) 6K E-Z Lube Dexter, w/Brakes

Suspension: Multi-Leaf Spring

Brakes:  Electric 12" x 2" , w/ break-a-way

Wheels: 16" x 6" Single 8-Bolt

Tires:  LT235/85R16" 10-PR

Jack Capacity:  12,000 lb. w/ Drop Foot

Main Frame:  8" Channel @ 11.5#

Crossmembers: 4" Channel @ 4.5#

Side Rail: 6" Channel @ 8.2#

Decking: 2" x 8" Treated Pine

Tie Downs: Rub Rail w/ Stake Pockets

Lights: DOT LED Sealed Rubber-Mounted
             w/ Conduit

Colors: Yellow or Black

LTBL - Lockable Toolbox Lid

8WOD - 2" x 8" White Oak Deck

KP - Adjustable Kingpin

8WARL - Additional Ramp Length (1` Maximum)

WIR - Wood Insert Ramps

8WADL - Additional Deck Length (4` Maximum)

8W102 - 102" Wide

8WSATG - 8` Wide Spring Assisted Tailgate

8WSSATG - 8` Wide Split Spring Assisted Tailgate

3R - 3rd Ramp

DON - 5` X 8` Deck On Top Of Gooseneck

PBT - Pop Up Beavertail
MW - Modular Wiring

TC - Trickle Charger for Break-A-Way

STM - Spare Tire Mount

STR - Spare Tire & Rim

CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
