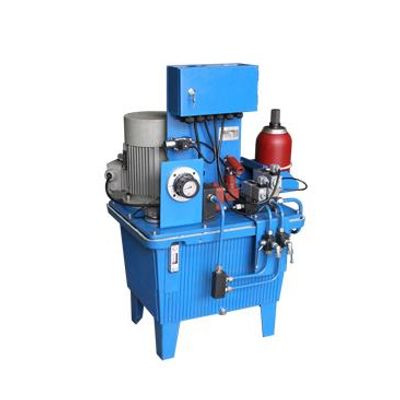

Huawu - Model SBHA Series -Hydraulic Power Unit
SBHA series hydraulic power units are mainly applied to the matched drive of SB/SBD series safety brakes and other single-acting cylinders. One kind of hydraulic power units shall be used for safety brakes when after the type of this hydraulic power unit where add a suffix/1, which can be used to control the releasing and closing of brake at the same time; other kinds of hydraulic power units shall be used for double-mechanism safety brake when after the type of this hydraulic power unit where add a suffix/2, which can be used to control the releasing and closing.
Most popular related searches
- Ambient temperature: -20?~+50?
- Relative humidity: ≤90%
- Operating duty: S3,40%
- Main hydraulic components adopt domestic and foreign famous brand with stable and reliable performance. Hydraulic components like Rexroth, Parker and Vickers and so on also can be selected according to customers`requirements.
- Main valves are seat valves, which are characterized by little leakage, system can hold pressure properly, motor isn’t required to run for a long time.
- Be equipped with hand pump, which can be used as the emergency power supply when powered off and maintained.
SBHA Series Hydraulic Power Unit:
- Product type:SBHA10-12/1?SBHA10-20/1?SBHA14-09/1?SBHA14-16/1?SBHA10-12/2?SBHA10-20/2?SBHA14-09/2?SBHA14-16/2
- Application product:SBHA10-12/1?SBHA10-20/1?SBHA14-09/1?SBHA14-16/1 series suitable for single mechanism single hydraulic station with 1-2 sets of safety brakes;SBHA10-12/2?SBHA10-20/2?SBHA14-09/2?SBHA14-16/2 series suitable for 1 or 2 sets of safety brakes with double mechanism and single oil circuit.
- Rated pressure (Mpa):8?10?14?16
YZB Series Hydraulic Power Unit:
- Product type:YZB08-20(27)?YZB12-15(23)?YZB14-27?YZB16-23
- Application product:Appllication wind-proof brake.
- Rated pressure (Mpa):8?12?14?16
YZBS Series Hydraulic Power Unit:
- Product type:YZBS10-12?YZBS10-20?YZBS14-09?YZBS14-16
- Application product:Application single mechanism safety brake
- Rated pressure (MPa):10?14
YZBA Series Hydraulic Power Unit:
- Product type:YZBA10-12(20)?YZBA12-12?YZBA14-09(20)?YZBA16-12(16)
- Application product:Appllication wind-proo
- Rated pressure (MPa):10?12?14?16
