Huita - Model LiF -202195172554 -Crystal
Application : Infrared window, ultraviolet window, prism.
Most popular related searches

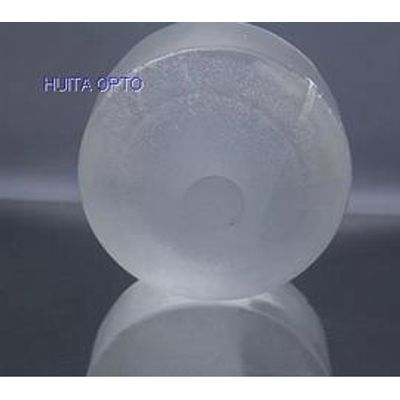

- Product name : LiF Crystal
- Product No. : 202195172554
- Material : LiF
- Size : 4-200mm; 10×10×1.0mm or According to customer needs
- Density(g/cm3) : 2.64
- Refractive Index : 1.37327 @2.5μm;1.624 @0.121μm
- Form : transparent crystal, round rod, square
- Purity : 4N,5N
Details
- Growth method: Bridgeman
- Crystal structure: trigonal crystal
- Lattice constant: a =4.026 Å
- Mohs hardness: 4mohs
- Coefficient of thermal expansion: 37.0 x 10-6 /? @0-100? Crystal direction: <100>, <110>, <111>
- Transmission range: 0.105 ~ 6 μ m
- Dielectric constant: 9.0 @ 25 ?, f = 100.. 109hz
- Thermal conductivity: 11.3w / m.k @ 41 ?
- Specific heat: 1562j / kg. K
- Reflection loss: 4.4% (4.0 μ m)
- Young`s modulus: 64.79gpa
- Shear modulus: 55.14gpa
- Bulk modulus: 62.03gpa
- Breaking modulus: 10.8mpa
- Elastic coefficient: C11 = 112; C12=45.6; C44=63.2GPa
- Water solubility: 0.27g/100g @ 18 ?
- Crystal plane orientation accuracy: ± 0.5
- Edge orientation accuracy: ± 1 °
- Polishing: single/ double side polishing, etc
- Surface roughness: < 5 Å
