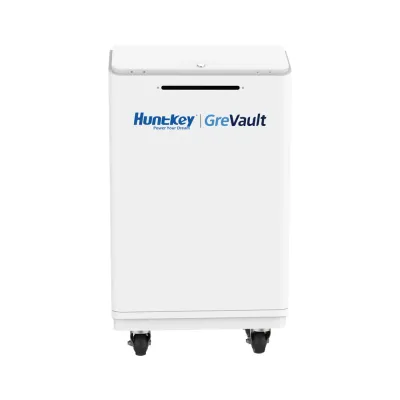

Huntkey GreVault - 48V 15kWh Whole Home Battery Bank
The Huntkey GreVault 48V 15kWh Whole Home Battery Bank utilizes advanced LFP 320Ah battery cells to minimize the number of series and parallel connections, enhancing cell consistency and ensuring stable and reliable performance. With a capacity of 15kWh, it is designed to meet the daily electricity needs of most households, even during power outages, ensuring continuous operation of essential appliances. The use of LFP cells offers notable advantages, including high safety, long cycle life, and excellent performance under varying temperatures. The battery supports standard and maximum charging currents of 160A and 200A, respectively, and is equipped with RS485A/RS485B communication modes for system integration. The modular design and simplified setup make installation and future maintenance straightforward. With minimal internal resistance (≤40mΩ) and robust operational temperature ranges, it promises to be an efficient and reliable solution for home energy storage.
project : parameter
- Name : 15kWh Whole Home Battery Bank
- Nominal Voltage : 48V(1P15S)
- Nominal Capacity : 320Ah
- Nominal Energy : 15360Wh
- Internal Resistance : ≤40mΩ
- Standard Charging Current : 160A
- Max Charging Current : 200A
- Upper Limit Charging Voltage : 53.25V or 3.55V/cell
- Standard Discharging Current : 160A
- Max continuous Discharging current : 200A
- Discharge Cut-off voltage (Udo) : 40.5V
- Charging Temperature Range : 0℃~55℃
- Discharge Temperature Range : -30℃~55℃
- Storage Temperature Range : -20℃~60℃ (Recommended:25±3℃)
- Storage Humidity Range : ≤90%RH
- IP Grade : IP20
- Dimensions (L*W*Hmm) : 870*595*245
- Weight : 127±3kg
- Communication Mode : RS485A/RS485B
- Number of Parallel Connections : Supports up to 16 units in parallel (6 batteries in parallel recommended)
