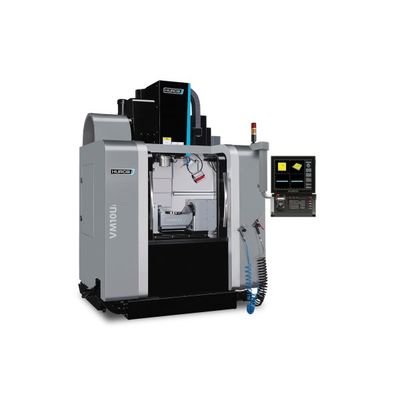

Hurco - Model VM10Ui -5-Axis Integrated Trunnion Machining Centre
The efficient design of the Hurco 5-axis trunnion table machining centres is a key benefit to consider—we use an integrated trunnion table at Hurco instead of simply sticking a trunnion table on a 3-axis machining centre and passing it off as a 5-axis machine. The integrated trunnion table design provides more clearance in Z compared to other brands.
Most popular related searches
TRAVELS & CAPACITY
- X, Y, Z Axis Travel : 533 x 406 x 483 mm
- A-Axis Travel : +30°/-110°
- C-Axis Travel : 360°
- Spindle Nose to Table Min/ Max : 36 / 519 mm
- Table Diameter : 198 mm
- Max. Weight on Table : 150 kg
- T-Slot Size : 6 x 10 mm
SPINDLE
- Max. Spindle Speed : 12000 rpm
- Spindle power (peak) : 7.5 kW
- Spindle torque (peak) : 47.7 Nm @ 1,500 rpm
TOOL CHANGER
- Tool Type : CAT, BT, DIN 40
- Number Of Tools : 24
- Max Tool Diameter : 89 mm
- Max Tool Length : 250 mm
- Max Tool Weight : 7 kg
FEEDRATES
- Rapid Traverse X,Y,Z Axis : 28 m/min
- Max. Programmable Feedrate : 28 m/min
- Rapid Traverse A, C Axis : 25 rpm
SIZE
- Machine Weight : 3,360 kg
ELECTRICAL
- Power rating / full load KVA : 14 KVA
- Machine Type : 5-Axis Integrated Trunnion Machining Centre
