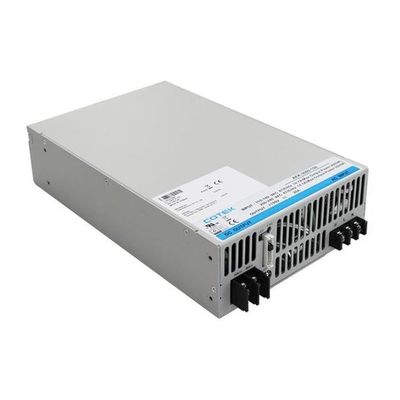

Cotek - Model AEK-3000 -HV Oring Diode - Switching Mode Power Supply
Universal AC input / Full range. Programmable output voltage & Current (0%~105%). High power density 16.3W / inch3. Built-in Oring Diode. Built-in RS-485 and I2C Interface. Global control via RS232/485. Forced current sharing at parallel operation. Constant current limit. Remote ON / OFF, remote sense function. Protection: OVP, OLP, OTP, Fan failure.
Most popular related searches
- MODEL: AEK-3000-150 Oring Diode, AEK-3000-200 Oring Diode, AEK-3000-250 Oring Diode, AEK-3000-300 Oring Diode, AEK-3000-400 Oring Diode
- Main Features: Programmable output voltage and output current (0%~105%), Parallel connection with current sharing, Compact design, high power density, high efficiency, Constant current limit suitable for battery charging application
- Rated Power: 3000W
- DC Output Voltage: 150V; 200V; 250V; 300V; 400V
- DC Output Quantity: Single
- Rated Current: 20A; 15A; 12A; 10A; 7.5A
- Ripple & Noise (Max.): 1500mVp-p; 2000mVp-p; 2500mVp-p; 3000mVp-p; 4000mVp-p
- Input Voltage Range: 90~264VAC, 127~370VDC
- Inrush Current (Typ.): 33A / 115VAC, 65A / 230VAC
- Function: Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim
- Parallel Connection: Yes
- Protection: Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure
- Cooling: Load and temperature control fan
- Efficiency: 93%
- Operating Temperature: -20~60?
- Storage Temp. & Humidity:-40~85?, 10~95%RH
- Safety-
- Dimension (WxHxD): 170x64x280 mm
- Weight (Net): 3.8kg
