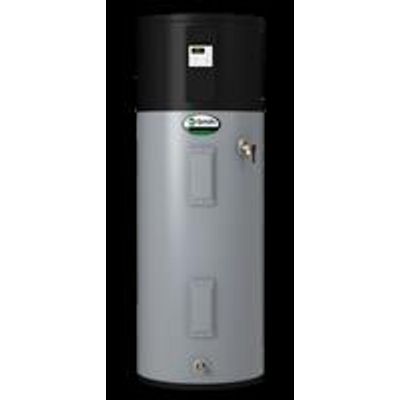

Voltex® - Model FPTU-66 -Hybrid Electric Heat Pump-Gallon Water Heater
The Voltex Hybrid Electric Heat Pump reduces water heating cost by up to 73% through an innovative design that pulls environmental heat while dehumidifying and cooling the ambient air at the same time.The FPTU-66 uses heat pump technology to deliver tremendous savings by generating heat through the heat pump technology instead of the heating elements. It offers premium features including a user-friendly display, vacation mode to save money while you are away, and a heavy duty anode that protects your tank for 6 years. In addition to the heat pump technology, this model also has two heating elements that help the water heater recover quickly during periods of high demand.
Increased Energy Efficiency
Improved efficiency designed to ensure available hot water at the lowest possible cost. Up to a 3.52 Uniform Energy Factor (UEF) rating which conserves energy and meets ENERGY STAR® qualifications.
Choice of Operating Modes
Select from Efficiency, Hybrid or Electric modes to match heating requiremnets to environmental conditions
Electronic User Interface
User-friendly electronic interface allows easy control of temperature setting, operating modes and communicates diagnostics.
Protective Anode
Protects the tank from the corrosive effects of hot water, to ensure long tank life
Tech Specs
Nominal Capacity: 66
Rated Storage Volume 67
UEF 3.52
First Hour Rating: 66
Upper Element Wattage: 4500
Lower Element Wattage: 4500
Max Wattage: 4500
Voltage: 208
Minimum Voltage Required: 208
Limited Tank Warranty: 6 Years
Limited Parts Warranty: 6 Years
Anode: Sacrificial Anode
Foam Insulation: 2"
T&P Relief Valve: Yes
Water Connection Location: Side
Water Connection Size: 3/4"
ENERGY STAR®: Yes
Digital Display: Yes
