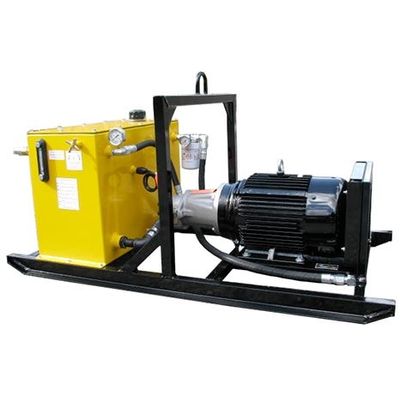

Hydra-Tech - Model HT150EV -Hydraulic Power Unit
FromHydra-Tech Pumps
The HT150EV power unit is driven by a 150HP 460 V, 3Ø, TEFC electric motor for use where electric power is available. It is designed to drive several of our pumps or other hydraulic equipment and tools. Several control options are available.
Most popular related searches
hydropower
hydraulic power unit
electric motor
electric power
electrical power
diesel power
diesel power unit
- Weight: 1840 lbs. (834 kg)
- Hydraulic Oil: SAE 10W or 20W (ISO 32 or 46) Type AW
- Engine: 150 HP 460 Volts, 3 Phase, 60 Hz, TEFC
- Horse Power: 150 Hp @ 1780 RPM
- Hydraulic Output: Variable, Max. 70 GPM (265 LPM)
- Hose Port Size: 1-1/2"
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 100 U.S. Gallons (378 Liters)
- Dimensions: H 56″ (142 cm) x W 42-1/2″ (108 cm) x L 111-1/2″ (283 cm)
- H 56″ (142 cm) x W 42-1/2″ (108 cm) x L 111-1/2″ (283 cm)
