Hydra-Tech - Model HT20E/EV -Hydraulic Power Unit
FromHydra-Tech Pumps

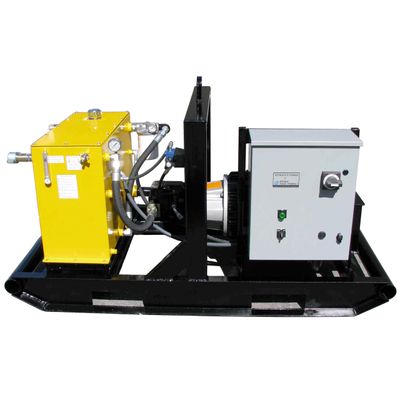

The HT20EV power unit is driven by a 20HP electric motor for use where electric power is available. It is designed to drive several of our pump models including the S3CML, S3VHL and S4T. Other hydraulic tools and equipment may also operate from this power unit.
Most popular related searches
- Weight: 1086 lbs. (493 kg)
- Hydraulic Oil: SAE 10W or 20W (ISO 32 or 46) Type AW
- Engine: 20 HP 230/460 Volts, 3 Phase, 60 Hz, TEFC
- Horse Power: 20 HP@ 1800 RPM
- Hydraulic Output: Variable, Max. 10 GPM (53 LPM)
- Hose Port Size: 3/4" NPT
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 30 U.S. Gallons (113 Liters)
- Skid Frame Mounted with Single Point Lifting Fork Slots
- Variable Piston Hydraulic Pump
- Case Drain Oil Cooler
- Variable Output Control
- Spin-On Return Filter VW Indicator
- Tank Top Filler/ Strainer
- System Relief Valve
- Pressure Control Valve
- Liquid Filled Pressure Gauge
- Fluid Level/ Temperature Gauge
- 575 Volts; 50Hz
- Control Panels
- Low Oil / High Temp Shutdown
- Custom Paint Colors
