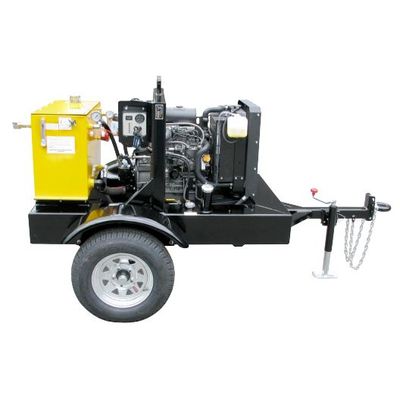

Hydra-Tech - Model HT25DYS -Portable Hydraulic Power Unit
FromHydra-Tech Pumps
The HT25DYS power unit is driven by a Yanmar Diesel T4F engine and is designed to drive several of our pump models including the S3CML, S3VHL, S4T, S4CSL, S4SCR, S4SHR and S8M. A built-in fuel tank allows this unit to run up to 24 hours between refills. Other hydraulic tools and equipment may also operate from this power unit
Most popular related searches
portable hydraulic power unit
hydropower
fuel tank
hydraulic oil cooler
hydraulic power unit
diesel power
diesel power unit
diesel engine
- Weight: 1245 lbs. (565 kg)
- Hydraulic Oil: SAE 10W or 20W Type AW (also: Dexron ATF or Biodegradable oil)
- Engine: Yanmar 3TNV88C Liquid Cooled Diesel (Tier 4 Final)
- Horse Power: 23.8 HP (16 KW) @ 3000 RPM
- Hydraulic Output: Variable, Max. 12 GPM (45 LPM) @ 2500 PSI
- Hose Port Size: 3/4" NPT
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 30 U.S. Gallons (114 Liters)
- Fuel Tank Capacity: 42 U.S. Gallons (159 Liters)
- Fuel Consumption: Approx. 2.0 U.S. Gal/Hr (7.5 Liters/Hr)
- Dimensions: H 55″ (140 cm) x W 58″ (147 cm) x L 105″ (267 cm)
- H 55″ (140 cm) x W 58″ (147 cm) x L 105″ (267 cm)
- Highway Trailer Chassis with Built-in Fuel Tank and Independent Suspension
- Single Point Lifting Bracket
- Engine Safety Shutdown Package
- Gear or Vane Type Hydraulic Pump
- Hydraulic Oil Cooler
- Variable Speed Throttle Control
- Spin-On Return Filter W/ Indicator
- Tank Top Filler/ Strainer
- System Relief Valve
- Made in USA
- Liquid Filled Pressure Gauge
- Fluid Level/ Temperature Gauge
- Skid Frame
- Multiple Hydraulic Circuits
- Other Flow and Pressure Combinations
