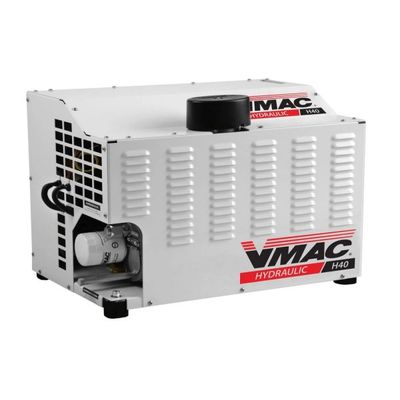

VMAC - Model 40 CFM -Hydraulic Air Compressors
VMAC’s 40 CFM hydraulic air compressor is the best choice for fleet managers and owners who require hydraulic powered compressed air and aren’t satisfied with the performance of reciprocating air compressors. The powerful H40 rotary screw air compressor is ideal for operating small to medium sized air tools. Meanwhile, the compact design allows it to fit on trucks and specialty equipment with limited available space.
Common jobs that use the compressor system:
- Mobile heavy duty mechanics
- Mobile tire service technicians
- 24/7 roadside repair technicians
- Light to medium duty lube trucks
- 3/4” impact wrenches
- Light chipping hammers
- Die grinders
- Tire inflation
VMAC’s 40 CFM hydraulic air compressors free up to 6 cubic feet on the truck deck. Systems are designed and engineered to be compact for service trucks and applications where space is limited.
H40 air compressors reduce truck GVW by as much as 260 lb, due to the systems’ innovative design, lightweight materials, and integrated components. Choosing a lightweight air compressor means you’ll be able to add more tools and equipment to your truck, carry more materials, or take advantage of better fuel economy.
VMAC hydraulic 40 CFM air compressors use patented rotary screw technology that can operate intermittently for smaller jobs, but are designed to run at 100% duty cycle without stopping, so operators don’t have to wait for their air compressor to fill up a bulky air receiver tank. This maximizes tool performance and eliminates downtime by keeping operators working.
12V/24V activated fan, turns on/off automatically to adapt to hydraulic and compressor oil temperature
Digital Control Module:Controls system operation and stored settings
VMAC Air Compressor:Oil-injected rotary screw; direct-driven; 25-40 CFM @ 100 psi; 100% duty cycle; up to 150 psi
Digital Display Box:LCD for on/off controls, observing system status and adjusting parameters, mounts where needed on truck
Controls flow of hydraulic oil through the system
Air Discharge:Includes check valve
Air/Oil Separator Tank:Separates compressor oil from compressed air
- 25-40 CFM* @ 100 psi (150 psi max)
- Direct-driven, 100% duty cycle, VMAC oil-injected rotary screw
-
9-12 GPM; open center hydraulic circuit
- 2,345 psi; 3,000 psi
- Approximately 150 lb (68 kg)
- 24.0” (l) x 16.5” (w) x 18.0” (h); 61.0 cm (l) x 41.9 cm (w) x 45.7 cm (h)
- Integrated hydraulic/compressor oil
- 12V or 24V fan
- #12 ORB Inlet, #16 ORB Outlet
- LCD digital control box with hour meter, service reminders, and error messages
- Live monitoring of air pressure, hydraulic and compressor temperatures
- Automatic cold climate protection
- Automatic warm-up mode extends system life
- Standby Mode turns system off and on depending on air use
- Compressor/hydraulic overheat protection
- Cooler bypass check valve
- Overpressure shutdown
- Automatic rapid blow-down valve on tank
- 200 psi pressure relief valve
- Automatic cold climate protection
- 2,800 psi hydraulic pressure relief valve
- Minimum 6-gallon air receiver tank recommended for proper operation of all functions
- White
- Black
- Custom (Fleet orders only)
- Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited).
- For more information about VMAC’s Warranty, visit www.vmacair.com/support/warranty.
