Carling - Model B-Series -Hydraulic-Magnetic Circuit Breaker

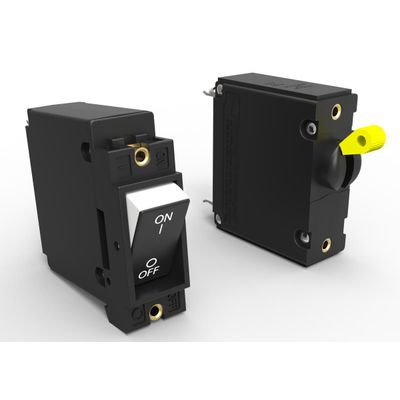

The B-Series are an optimal choice for both general purpose and full amp load applications. Extra insulation delivered by the tongue & groove half-shell construction provides the necessary spacing requirements for global regulatory safety approvals. Actuator options include handle, mid-trip handle, rocker and flat rocker. Rocker actuator options can be single color or a two color Visi Rocker®, both with push-to-reset options and choice of horizontal or vertical styling. Adding to the breaker’s versatility is a comprehensive choice of circuits, time delays, terminals and imprinting options. The B-Series is available as a one to six pole handle breaker or a one to three pole rocker breaker.
Agency Approvals: UL 489, UL 489A, UL 1077, UL 1500, UL 508, cULus, CSA Accepted, TUV and VDE certified to IEC/EN 60934, CCC
Amperage: Maximum 50 amps
Voltage: Maximum 277VAC or 80VDC
Maximum Interrupting Capacity: 7,500 amps
Agency Approvals: UL 489, UL 489A, UL 1077, UL 1500, UL 508, cULus, CSA Accepted, TUV and VDE certified to IEC/EN 60934, CCC
Number of Poles:
1-6 poles Handle actuator
1-3 poles Rocker actuator
Available Delays: Instant, Ultra-Short, Short, Medium, Long (motor loads), AC,DC, AC/DC; High Inrush - Short, Medium, Long
Maximum Current and Voltage Ratings:
0.02-30A @ 277VAC, 80VDC
31.0-50A @ 125/250VAC
0.1-50A @ 80VDC (UL489A)
0.1-30A @ 120/120-240VAC (UL489)
Maximum Interrupting Capacity: 7,500 amps
Auxiliary Switch Ratings:
10.1A @ 250VAC
0.1A @ 125VAC (gold contacts)
5A @ 30VDC
0.5A @ 80VDC
1.0A @ 65VDC
Available Circuits: Series, Shunt, Relay, Switch Only, Series w/Remote Shutdown, Relay and Shunt Trip Dual Coil
Actuator Style:
Handle (1 per pole or 1 per unit)
Rocker (1 per unit)
Terminal Options:
.250 QC Tabs
8-32 Screw w/ Upturned Lugs
8-32 Screw (Bus Type)
10-32 Screw w/ Upturned Lugs
10-32 Screw (Bus Type)
M4 & M5 Screw (Bus Type)
M4 & M5 Screw w/ Upturned Lugs
Push in Stud Terminals
Mounting Method: Front Panel
Snap-in Front Panel
Value Added: Custom actuator colors
PC Terminals available
Non-standard current ratings
- Power Supplies
- Medical Equipment
- Generator & Welders
- Office Equipment
- Control Panels
- Datacom/Telecom
- Marine
- Military
- Industrial Automation
- Commercial Food
