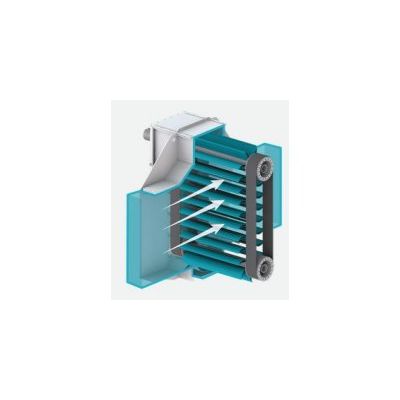

hydroEngine - Fully Flooded Hydro Turbine
The Fully Flooded hydroEngine model is rated up to 500 kW of output, has competitive savings in cost for both the turbine (less expensive manufacturing) and civil works (reduced excavation).
Product Details
HEAD
2 – 6 meters (net)
Power
150 – 500 kW
- Works best with lower heads and large flows
- Competitive cost savings for both the turbine (less expensive manufacturing) and civil works (reduced excavation)
- Units rated up to 6 m net head
- Accommodates larger tailwater variation

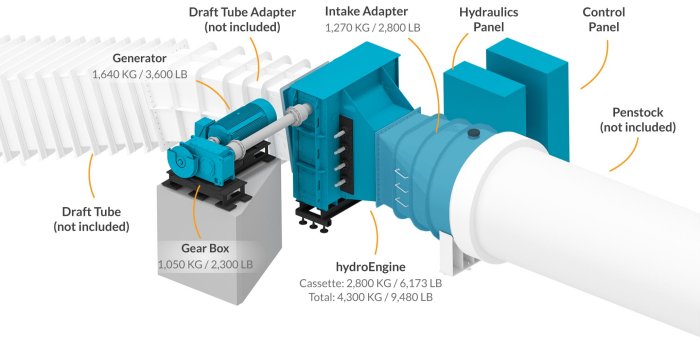

Hydro-mechanical equipment
Hydro-mechanical equipment
- hydroEngine
- Intake adapter
- Hydraulic power unit and pressure supply system
- Design specifications for draft tube
- Speed increaser (gearbox or belt drive)
- Special assembly tools
Electrical equipment
- Generator
- Power Factor Correction (if required, and as specified, by customer)
- Grid protection relay (as specified by customer)
Instrumentation and control equipment
- Unit SCADA control system (hardware and software)
- Integrated Sensors:
- – hydroEngine shaft speed
- – Inlet guidevane control
- – Powertrain health
- – Generator output
- – Water levels (upper and lower pools)
