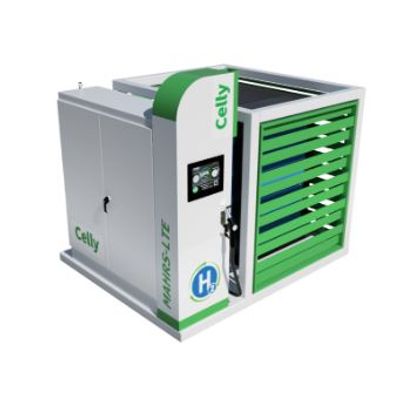

Celly H2 - Model MAHRS-LTE -Hydrogen Dispensing System
The MAHRS-LTE is a modular hydrogen dispensing solution designed for small-scale fleet operations, particularly those with up to five vehicles requiring 350-bar pressure. It features a pneumatic-driven compression system capable of consolidating up to 100 kg of hydrogen per day, given adequate inlet pressures. Engineered for simplicity, safety, and compliance, it adheres to standards such as HGV 4.1:20, HGV 4.9:20, NFPA2, J2601-1, and J2601-2. This ensures it meets rigorous safety and operational standards, including integrated venting, fire detection protocols, and IR communications. The system is reliable, providing component monitoring for maximum uptime. It offers scalability, accommodating different hydrogen fueling needs, and includes options for smart storage systems to manage consolidation and cascade dispensing. Its capabilities feature reduced maintenance, cost-effectiveness, and compactness, making it a practical choice for varying operational requirements.
The MAHRS-LTE offers a cost-effective and modular hydrogen dispensing solution for fleets of up to five 350-bar vehicles. Its pneumatic-driven compression system allows consolidation of up to 100 kg/day with sufficient inlet pressures. Designed for simplicity, safety, and compliance with industry standards, the LTE is ideal for small-scale fleet operations.
Modular Advanced Hydrogen Refueling Stations
- Safe : Compliant to HGV 4.1:20 & 4.9:20, and NFPA2 with J2601-1 & J2601-2. Including: IR communications, integrated venting, and fire detection protocols
- Reliable : System component monitoring for maximum uptime and extended component life
- Scalable : Turnkey systems engineered to fit your application and H2 fueling needs, H35, H70, T20-T40, and storage options
Capabilities
- Reduced maintenance
- Compact
- Cost effective
- Reduced lead times
- IR Communications
- Booster option allows for consolidation up to 100 kg/day.
- *Consolidation requires smart buffer solution
Why Choose Us
- Industry leading components
- Decades of integration experience
- Designed for your specific needs
- Safety centric
DISPENSING
Dispenses hydrogen at 350 Bar pressure.
FLOW RATE
Maximum flow rate of 3.6 kg/min, with an average of 1–2 kg/min*.
SMART STORAGE
Optional Celly Smart Storage system for consolidation and cascade dispensing.
- Dispenses hydrogen at 350 Bar pressure.
- Maximum flow rate of 3.6 kg/min, with an average of 1–2 kg/min*.
- Modular industrial dispenser design with remote mounting option.
- 7-inch HMI interface with Modbus Protocol and SAE J2799 communication.
- Supports fueling protocols J2601-1 and J2601-2.
- Equipped with a single H35 WEH nozzle (TK16/TK17 high flow with IR).
- Utilizes a Coriolis meter for precise flow measurement.
- Compression supported by a pneumatic diaphragm no-lube booster.
- Compression capability of 100 kg/day* at 520 Bar (variable by inlet pressure).
- Optional Celly Smart Storage system for consolidation and cascade dispensing.
