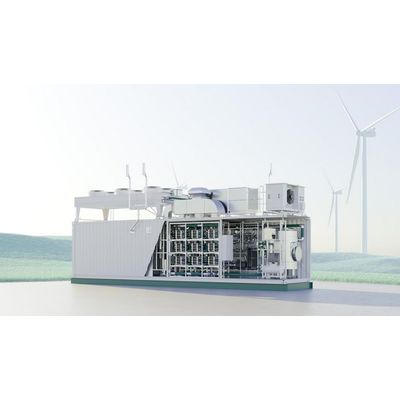

Quest One - Model PEM - ME450 -Hydrogen Electrolyzer
FromQuest One GmbH
Plug-and-play hydrogen: The Quest One ME450 electrolyzer is a proven turn-key solution for the easy and efficient production of green hydrogen. In the space of just one standard 40-foot container, enough hydrogen can be produced to refuel 90 cars daily. Each ME450 has an electrolysis capacity of 1 MW and can produce 450 kg of high purity hydrogen per day. Thanks to a multiple stack design, high plant availability, excellent spare parts availability, and our extensive range of services, risks can be minimized, and costs reduced. The proven design and technology make the Quest One PEM electrolyzer ME450 reliable and future-proof.
Most popular related searches
high-purity hydrogen
heat recovery
green hydrogen
proton exchange membrane electrolyzer
hydrogen production
hydrogen electrolyzer
- Nominal load: 1 MW corresponds to refueling 90 cars per day
- Hydrogen production: 450 kg/d
- A turnkey solution with scalability
- H2 production nominal: 450 kg/d | 210 Nm3/h
- Energy consumption1 : 4.7 kWh/Nm3 H2 | 53 kWh/kg
- System efficiency1 ; 75 %
- Performance class: 1 MW
- H2 production modulation range: 42 – 210 Nm3/h | 20 – 100 %
- H2 purity: 5.0 (meets ISO 14687:2019 Table 2)
- Load change: 30 s (Standby to nominal load)
- H2 output pressure : 20 – 30 bar(g)
- Heat recovery: Heat output: 170 kW BoL | 350 kW EoL, 57°C handover at customer system | >90% system efficiency
- H2O required quality: TrinkwV 2020 | EU Directive 2020/2184-EU
- H2O consumption nominal: 260 kg/h (at10°dH)
- Power supply electrolysis2: 3 x 480 V Y, 3 x 480 V ? /50 Hz (acc. ICE 600038)
- Connecting power: 1.325 MVA
- Power supply periphery: 3 x 400 V / 50 Hz (acc. ICE 600038)
- Connecting value: 150 kW
- Dimensions LxWxH: 40` Container, incl. attachments ca. 13.2 x 4.0 x 5.7 m
- Weight: approx. 36 t (operational)
- Ambient temperature: -20°C to +40°C
