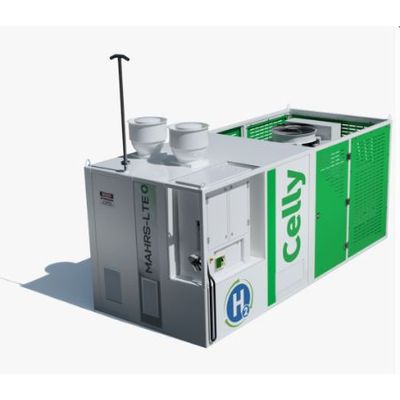

Celly H2 - Model MAHRS-LTE+ -Hydrogen Refueling Station
The MAHRS-LTE+ from Celly H2 offers a sophisticated solution for hydrogen refueling, featuring a hydraulically driven, two-stage hydrogen compression booster. It efficiently consolidates up to 400 kg of hydrogen per day at 520 bar. Its ability to perform simultaneous cascade filling and support fleets of 10 or more vehicles makes it ideal for comprehensive, back-to-back refueling operations. The modular design ensures not only ease of maintenance but also significant operational cost savings. Safety and compliance are paramount, with conformity to standards like HGV 4.1:20 & 4.9:20, NFPA2, and J2601-1 & J2601-2. Additionally, the system boasts integrated IR communications, venting, and fire detection. Monitoring capabilities enhance system uptime and component life, while its scalability and compact nature make it adaptable to specific H2 fueling needs. Offering turnkey solutions with reduced lead times and maintenance, the station maximizes reliability, performance, and cost-effectiveness for hydrogen fueling infrastructure.
The MAHRS-LTE+ enhances the LTE with a hydraulically driven, two-stage hydrogen compression booster, enabling consolidation of up to 400 kg/day at 520 bar. With simultaneous cascade filling and smart storage capabilities, it supports fleets of 10 vehicles or more with back-to-back refueling needs. This system’s modular design ensures ease of maintenance and operational cost savings while meeting rigorous safety and compliance standards.
Modular Advanced Hydrogen Refueling Stations
- Safe : Compliant to HGV 4.1:20 & 4.9:20, and NFPA2 with J2601-1 & J2601-2. Including: IR communications, integrated venting, and fire detection protocols
- Reliable : System component monitoring for maximum uptime and extended component life
- Scalable : Turnkey systems engineered to fit your application and H2 fueling needs, H35, H70, T20-T40, and storage options
- Reduced maintenance
- Compact
- Cost effective
- Reduced lead times
- IR Communications
- Booster option allows for consolidation between 20 kg/hour.
*Consolitation requires smart buffer solution
- Industry leading components
- Decades of integration experience
- Designed for your specific needs
- Safety centric
- Dispenses hydrogen at 350 Bar pressure.
- Maximum flow rate of 3.6 kg/min, with an average of 1–2 kg/min*.
- Integrated industrial dispenser design.
- 7-inch HMI interface with Modbus Protocol and SAE J2799 communication.
- Supports fueling protocols J2601-1 and J2601-2.
- Equipped with a single H35 WEH nozzle (TK16/TK17 high flow with IR).
- Utilizes a Coriolis meter for precise flow measurement.
- Includes a 10 Ton, 120,000 BTU/HR water-glycol chilling system for temperature compliance.
- Compression supported by a two-stage hydraulic no-lube H-type booster.
- Compression capability of 400 kg/day* at 520 Bar (variable by inlet pressure).
- Standard Celly Smart Storage system for consolidation and cascade dispensing.
