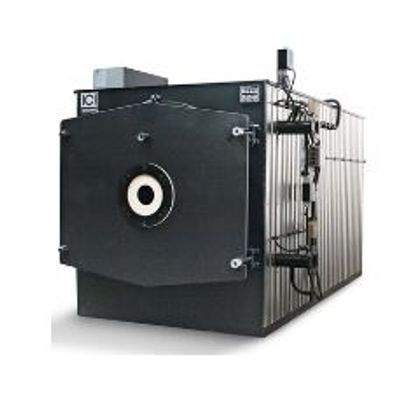

ICI-Caldaie - Model OPX -Thermal Oil Heater
Thermal oil heater in 3 pass configuration with single pass combustion chamber and flue gas outlet in the rear. It is designed with low thermal loads and high oil speed to eliminate any oil cracking risk, offering a high reliability against the risks of overheating even in cases of oil circulation interruptions.
Most popular related searches
- Design pressure: 10 bar
- Heat output: 116 ÷ 9302 kW
- Efficiency: > 86,0 %
- 2 input output connections complete with counter flanges
- 1 boiler drain valve
- 2 oil input output pressure gauges complete with steel shut-off valves
- 1 liquid expansion safety thermostat with manual reset
- 1 safety differential pressure switch for boiler oil circulation, complete with steel valves
- 1 oil flow temperature probe
- 1 oil return temperature probe
- 1 flue gas sensor
- Oil circulation unit including:
- electric pump coupled directly to an electric motor with joint, cast iron body, steel shaft with self-cooled mechanical seal, positioned on support
- 2 cast iron globe valves with sealing metal bellows, mounted on suction and flow
- 1 nodular cast iron filter mounted on pump suction
- 1 pressure gauge with steel shut-off valves
- 2 stainless steel expansion compensators mounted on pump suction and flow (models > OPX / OPX REC 3000)
