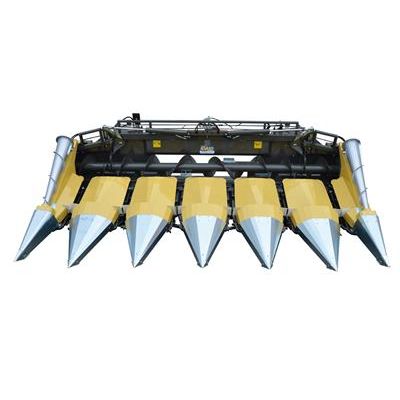

Idass - Rigid Energy Harvester
Sheetwork frame with casing, in H.L.E. sheetwork. Original rear grid. Large diameter harvesting bars (patented). Driven by a rasp bar in treated steel (reinforced front bearings, with grease nipples). `Cutter` or `gear` type bars (4 x 1/2 cutterbars + 4 x 1/2 clamps) as preferred. Opening with rim at the top of the plate to avoid any jamming. Adjustment of the plates thanks to an electrically-controlled actuator. Plastic or steel monoblocs with zinc-coated tips. Interchangeable drive and hitch frame.. Adjustable angle (3 positions) bringing the header nearer to the harvester (minimal overhang, excellent feeding). Between 21 and 23° (depending on tyres).
Intake auger
- Large diameter with helicoidal mechanism
Harvesting chains
- Harvesting chain with a 30 mm pitch, no quick connect system, with pressure support plate
- Easy access to the harvesting chains to check tension
- Large chain tensioning pinions
Gearboxes
- Threshing drum and harvester gearboxes
- Extralarge and undeformable, oiled and greased
- One safety free wheel in each threshing drum gearbox (for a gentle shutdown)
- Clearing cutter to avoid jamming around the threshing drum gearbox
- Easy checking of oil level for the threshing drum gearboxes
- Chain coupling between the gearbox and header to simplify operations
Spacing
- 75 or 80 cm spacing as standard
- Different spacing (60 - 77.5 - 90 cm) possible at request; contact us for details
Warranty
- 3-year warranty for parts and labour + 2 years
- I.e. a total 5-year warranty for header gearboxes, frames, harvesting bars, excluding wearing parts, with unlimited usage
Revolving reels
- 2 original hydraulic augers, with an integrated tank and hydraulic pump driven mechanically by the harvester
Range
Compatible with most Combine Harvesters available commercially; from 4 to 12 rigid rows with or without disengaging threshing drums for each row... IDASS offers its new range of harvesting heads, with a 5-year Warranty*warranty conditions:
* 3-year warranty for parts and labour + 2 years = a total 5-year warranty for header gearboxes, frames, harvesting bars; excluding wearing parts, unlimited usage.
Options
- Stem crusher
- Hydraulic coupler
- Sunflower plate kit
- Sunflower cutter kit
- Forage harvester assembly kit
