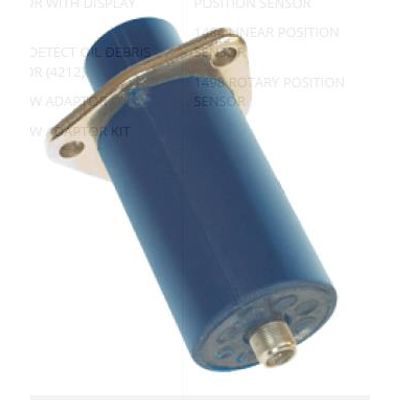

Gill - Model CY90-F -Ignition Coil
The CY90-F Ignition Coil is designed for use in arduous gas engine applications such as engines with large cylinders and burning low-calorific fuels.
Most popular related searches
With extended spark duration far in excess of any produced by CDI ignition systems, the CY90-F provides superior performance, leading to a cleaner burning engine.
The CY90-F is a highly efficient, robust design that will provide powerful spark ignition on any gas-fuelled engine.
- Primary Resistance: 0.7 ohms nominal
- Primary Inductance: 5.0mH
- Peak Current: 15.0A
- Typical Spark Duration: 2000µs
- Spark Energy: >100mJ
- Secondary Voltage: 35kV max
- LT Connections: 3-pin MS Connector
