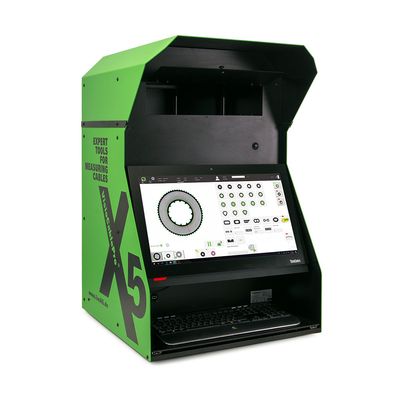

iiM VisioCablePro - Model VCPX5 - 401.0020.07 -Cable Measuring Device
FromiiM AG
For measuring cable samples with an outer diameter up to 130 mm (5.11 Inch). The cable measuring device VCPX5 is designed for geometrical measurements for core insulations and cable sheaths. The easy way of measurement: With its robust construction and easy application the cable measuring device VCPX5 is suitable for quick and most accurate measurements in cable production. Depending on the chosen objective, very small or very large cable samples can be measured. A flexible device: An integrated USB-port allows quick connecting of the cable measuring device VCPX5 to external devices. Therefore the VCPX5 can be flexibly used.
Most popular related searches
- Object size / measuring range up to 130 mm (5.11“) (larger customisations are possible)
- Quick and very easy measurement
- Little training required (without a customer specified database an initial operating instruction takes only 15 min)
- Suitable software: VELOX (measuring software), ProCable3 (CAQ system)
- Various external CAQ software are connectable (CIQ-AESA, ADVARIS, QDA-ASI-DATAMYTE, QUASAR, etc.)
- No user influence on default optical focus as well as default optimised, intelligent and homogeneous lighting
- Shock and vibration resistant due to an optimised sensor arrangement and balanced weight distribution
- Quick and very precise measurements due to the robust construction and easy operation
- Measuring software enables various operator level settings (production, laboratory, administrator, service, etc.)
- Standardised individual components lead to supply security and therefore a short delivery period
- Easy connection with external devices
* the most suitable configuration can only be determined with your minimum and maximum sample outer diameter
- Size (W x L x H):
- 600 x 560 x 910 mm
- 23.6 x 22 x 35.8 Inch
- Weight:
- 54 kg
- 119 lbs
- Supply Voltage: 100 - 240 V
- 50 - 60 Hz
- Input Power: max. 100 Watts
- Resolution: corresponds to 0.1% of the image field
- Lighting: LED
- Camera*: customised 1-3 cameras, high resolution
- Measuring range: up to max. 130 mm (5.11") outer diameter
- Measuring according to standards:
- IEC 60811-201; -202; -203
- LV112 (A Faktor)
- ICEA S-94-649
