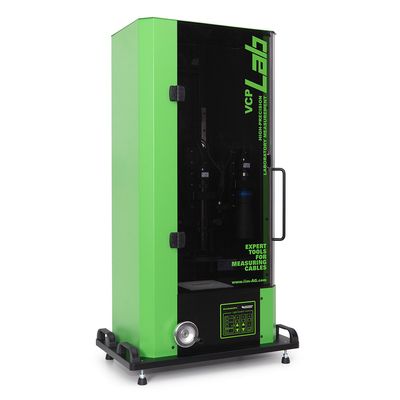

iiM VisioCablePro VCPLab - Model 401.0003.05 -Offline Cable Measurement Device
FromiiM AG
For cable samples with an outer diameter up to 48 mm (1.89"). The cable measuring device VCPLab is a camera-based system for measuring cable geometries from insulations and sheaths. Integrated high resolution sensors allow very accurate measurements of both very thin samples with an outer diameter smaller than 1 mm (0.04“) and cable sheaths with an outer diameter up to 48 mm (1.89").
Most popular related searches
- Robust case seals against extraneous light
- Central control unit
- Semi-automatic focussing and illumination
- Safe from impacts and vibrations
- Quasi shadow free transmitted light
- Optimal system status for lighting, optics and camera
- A measurement with 2 cameras is possible
- Adjustable operation distance for 2D measurements in laboratories
- Very precise measurement due to high resolution sensors
- Standardised individual components
- Very easy measuring procedure
- Suitable software VELOX and CAQ-System ProCable available
Optional
- VCPLab inclusive All-In-One Windows PC
- Size (W x L x H)
- 600 x 380 x 1070 mm
- 23.62 x 14.96 x 42.13 Inch
- Weight:
- 77 kg
- 170 lbs
- Supply Voltage:
- 100 - 240 V
- 50 - 60 Hz
- Input Power: max. 100 Watts
- Resolution: corresponds to 0.1% of the image field
- Lighting: LED
- Camera*: 1-2 cameras
- Measuring range: up to max. 48 mm (1.89“) outer diameter
- Measuring according to standards:
- EN 50396
- HD 605
- ICEA S-94-649-2000
- IEC 60502 -1
- IEC 60811 -201; -202; -203
- IEC 60840
- LV112 (A Factor)
