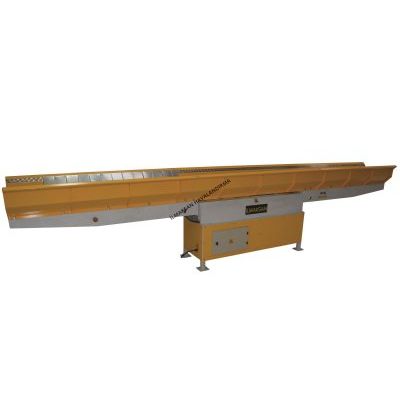

Ilmaksan - Seam Closer Duct Zipper Machine
The duct zipper machine is designed to seam the rectangular ducts, square ducts and plain sheets. The machine can make both rectangular and square form clamps. The clamps is formed in three stages. Firsty it is rollformed to both sheets at the front bending. Secondly, conjunction of the sheets is obtained an lasty the clamp is made. Besides silent operation of the machine, it is easy to use and economical with its output and energy saving features. Among the similar machines with its clamp (seaming) type it is tighter and has less air leakage it has got special roller lits, which are highly resistant to friction and break downs.
Most popular related searches
The Duct zipper machine is usedtolock(seam) thefoldedduct on duct forming machine.
- The rolls are 4140 and the gears are 7131 material.
- The numlock lock system is used in our duct zipper machine.
- Our duct zipper machine can lock min 125x125 mm duct with specially designed proprietary drivers.
- The machine can lock the 120 mm duct in a very short time like 15 seconds.
- In our lock system the hijack air is in min level.
- It can be oiled easily.
- The delivery time for DUCT ZIPPER MACHINE would be max 1 week.
- Height 970 mm
- Width 600 mm
- Length 4750 mm
- Weight 630kg
- Capacity 0.5 - 1.2 mm
- Power Supply 380 V/4Hp/50 Hz
- Motor Output 3 KW - 1400 D/DK
