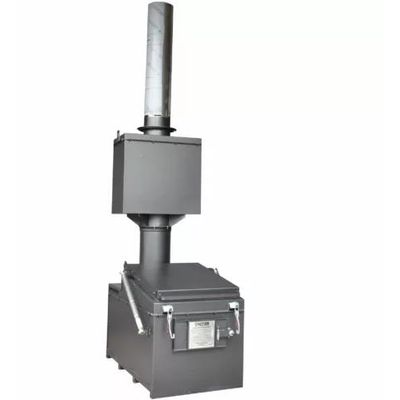

Inciner8 - Model I8-55G - General Incinerator
From Incinerators - Specialist - Containerised Incinerators
One of our most popular models is our i8-55G. It is completely flexible and customisable making it one of our most versatile incinerators. The top-loading design means liquids are well retained within the system during combustion and its smaller size belies high efficiency and impressive burn rates. The i8-55G General Incinerator is one of the most popular models in our medium capacity range due to its simple, effective use as a multi-purpose incinerator with suitability for disposing of general and medical waste. The addition of advanced secondary chamber technology with a gas retention time of 2.0 seconds allows to i8-55G to comply with stringent environmental standards for various types of waste.
- More about this product — External link
-
Most popular related searches
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Small operating footprint
Applications
- Camps
- Military Operations
- OiI & Gas Facilities
- < 150 People Comunities
- Industrial Waste < 500kg day
Hand-Built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
Technical Specification
Operational Specifications
- Combustion Chamber Volume (m3): 0.54m3
- Burn Rate*: up to 40kg per hour
- Average Fuel Consumption: 11 - 13 ltrs p/h
- Operational Temperature: > 850°C
- Gas Retention in Secondary Chamber: 2 secs
- Temperature Monitoring: Yes
- Average ash residue (%): 3%
- Thermostatic Device: Yes
Physical specifications
- External Length (mm): 1520mm
- External Width (mm): 920mm
- External Height (mm): 4480mm
- Door Size (mm): 720 x 830
- Shipping Weight: 2100kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
