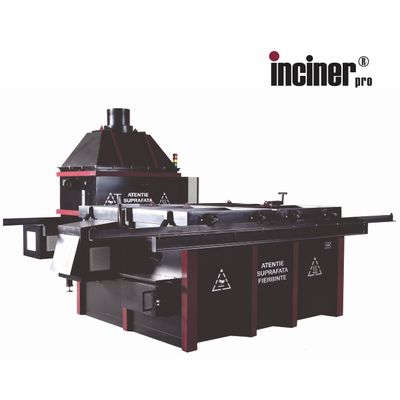

IncinerPro - Model i1750 -Stationary Incinerator

AS STANDARD EQUIPPED WITH:

• 2 combustion chambers (main and post-combustion), in order to be fully consistent with the requirements of EC Regulation 1069/2009 and EU 142/2011
• Standard 3 fully automated, independent burners (2 in the main combustion chamber and 1 in the post-combustion chamber). There is also the 1750 version with 5 fully automated, independent burners (4 in the main chamber and 1 in the secondary combustion chamber)
• The IncinerPro i1750G variant is equipped with 5 burners and grill on the inside, so it is especially recommended for slaughterhouse waste incineration.
• Control panel with touch-screen technology
• Automated programming and control system for combustion parameters and cycles
• Visual and audible alarm system
• Refractory concrete resistant to high temperatures (1,500 ° C)
• Thermocouples for keeping temperatures at set values
• Double ventilated chimney
• 2 sliding doors, with safety system against accidental closing
• Door for removing the ash

OPTIONALS:

• Heat recovery

Burning rate, load capacity, fuel and current consumption are parameters that depend on the waste (type, volume, species, humidity, density, how it was mixed), incinerator loading mode, technical state of the burners and incinerator, fuel quality.

It is very important to understand that the burning rate is heavily influenced by many parameters. Because there are no 2 identical waste batches, the operator(s) must try to load a mixture of different animal wastes for a better incineration process.  A correct mixture of waste will ensure better burning rate and lower fuel consumption.

Please read the instructions carefully and follow our technical advice as much as possible. Burning process in an animal waste incinerator is different from burning process in a boiler (where only fuel is burned).

• Loading method: up
• Primary chamber volume (total / above concrete grid (e.g. i1750G)): 3,73 /2,68 m³
• Load capacity: up to 1.750 kg (depends on waste volume)
• Burn rate: depends on waste (type, humidity, calorific value)
• Gas retention time: min. 2 sec. at min. 850 °C
• Overall dimensions: (L x l x h)4,5 x 3,1 x 2,4
• Weight: 5,3 tones (depends on variant)
