Indeeco

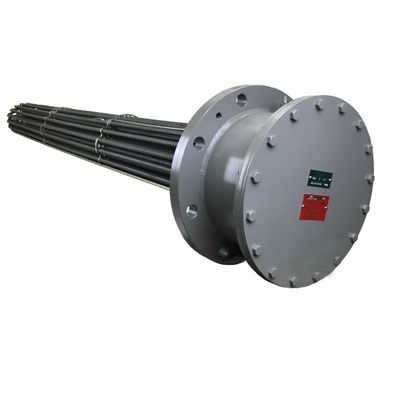

Indeeco - Explosion-Proof Flanged Immersion Heaters
FromIndeeco
Indeeco’s explosion-proof flanged immersion heaters are one of the most widely used solutions for heating fluids and gases in hazardous locations. CSA approved for Class 1, Division 1, Group B, C and D locations and/or approved for ATEX, UKCA and IECEx Zone 1 and/or Zone 21 locations. Indeeco’s explosion-proof flange heaters are designed for use in tanks, vessels, and in-line heating.
Most popular related searches
- Wattages up to 8.5 megawatts
- Watt densities up to 200 w/in2
- Voltages up to 600V
- Element sheath temperatures up to 1,500°F
- Multiple flange and element materials
- Flange sizes up to 30″ and class 2500 ASME B16.5
- ANSI B16.5 class 150 or class 300 flange 3″ up to 30″ (max flange size of 24″ for div 1 applications)
- Designed to fit into schedule 40 or schedule STD pipe for the given flange size
- Flange material A105 carbon stl, A182 304/304L or 316/316L stainless steel
- Elements sheath materials available; steel, 304 SST, 316 SST, 321 SST, incoloy 800, incoloy 840, copper
- Epoxy or RTV sealed heating elements to prevent moisture absorption
- Stainless steel welded bussing to eliminate loose connections
- Heater circuits divided into 48A max as default
- Heavy duty, low pressure drop design, 304 SST element support spacers provided on 24″ centers
- Spacer support rods provided for immersed length greater than 30″
- Lifting lugs for heaters 4″ and larger
- Nitrile bonded fiber, or SST/graphite spiral flange gasket provided as standard
