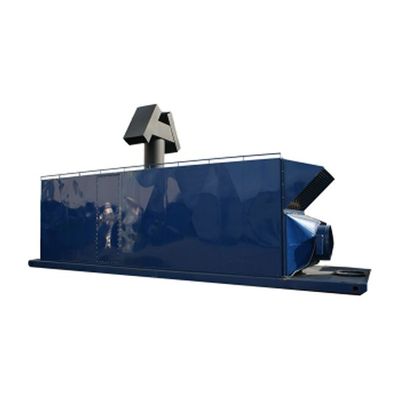

TIOGA - Model IDF-21 Series -Indirect Fired Skid Mount Heaters

IDF-21-32

• Thermostat Control: Mechanical-Low/High
• Btu/Hr: 4,200,000
• Maximum Btu/hr: 2,400,000
• Minimun Btu/Hr: 2,100,000
• CFM: 11,000
• External Static Pressure: Up to 3″ ESP
• Fan Type: Backward Inclined
• Discharge Diameter: 32″
• Voltage: 3 Phase, 208 Volt
• Current Consumption: 55 amps
• Recommended Fuse Size: 100 amps
• Fuel Type: #1-#2 Diesel, NG or Vapor Propane
• Natural Gas Consumption: 2,100 CFH 4,200 CFH Hi-Fire
• Propane Consumption: 22.9 GPH Lo-Fire/ 45.9 GPH Hi-Fire
• Diesel Consumption: 15.1 GPH Lo-Fire/ 30.2 GPH Hi-Fire
• Pressure Range: 2 psi / 25psi
• Temperature Control Discharge: Yes
• Air Proving Safety: Yes
• Flame Sensing Safety: Yes
• Net Weight: 19,310 lbs.

IDF-21-34

• Thermostat Control: Mechanical-Low/High
• Btu/Hr: 4,200,000
• Maximum Btu/hr: 2,400,000
• Minimun Btu/Hr: 2,100,000
• CFM: 11,000
• External Static Pressure: Up to 3″ ESP
• Fan Type: Backward Inclined
• Discharge Diameter: 32″
• Voltage: 3 Phase, 480 Volt
• Current Consumption: 28 amps
• Recommended Fuse Size: 60 amps
• Fuel Type: #1-#2 Diesel, NG or Vapor Propane
• Natural Gas Consumption: 2,100 CFH 4,200 CFH Hi-Fire
• Propane Consumption: 22.9 GPH Lo-Fire/ 45.9 GPH Hi-Fire
• Diesel Consumption: 15.1 GPH Lo-Fire/ 30.2 GPH Hi-Fire
• Pressure Range: 2 – 25 psi.
• Temperature Control Discharge: Yes
• Air Proving Safety: Yes
• Flame Sensing Safety: Yes
• Net Weight: 19,310 lbs.
