Indoor / Outdoor Enclosure

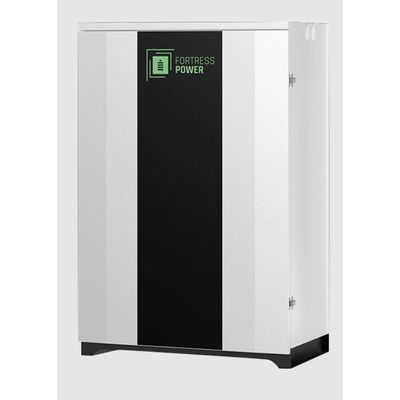

Expand your energy storage with the Fortress Power DuraRack. This iron enclosure stores up to 4 eFlex 5.4kWh batteries, and is expandable up to 4 units (15 eFlex batteries, 81KWh). The DuraRack includes integrated busbars, wheels, and a DIN rail heater mount. This enclosure can be free-standing or pad mounted and is safe for indoor and outdoor installations.
- IP65 WATER AND DUST RESISTANT FOR BOTH INDOOR AND OUTDOOR INSTALL
- INCLUDES INTERGRATED BUSBARS AND BATTERY CABLES FOR EASY STACKING
- EASY TO ADD DIN RAIL THERMOSTAT FOR COLD CLIMATES
- PASSIVE COOLING VENT FOR WARM CLIMATES
- BUILT ON WHEELS FOR EASY MOVEMENT AND POSITIONING
- EXPANDABLE UP TO 4 UNITS (15 EFLEX BATTERIES; TOTAL 81 KWH)
Enclosure Material: Carbon Steel
Enclosure Protection: IP65 water and dust proven (outdoor)
Enclosure Color: White
Dimensions [W x H x D]: 29.29 x 41.34 x 18.03 in (744 x 1050 x 458 mm)
Enclosure Weight: 59.6 kg / 153.2 lbs
Maximum Battery Units: 4 eFlex 5.4
Storage Capacity Range: 5.4kWh - 21.6 kWh per unit
Max. Storage Capacity: 81 kWh (4 unites in parallel)
Knockout Size: 1inch & 2 inch
Positive and Negative Battery Busbars: 2 x 4 points; M8 (5/16) Terminal Rings
Positive and Negative Busbars to Inveter: 2 points; m10 (3/8) Terminal Rings
Battery Cables: 4 sets of
Terminal Torque: 7.0 - 7.7 Nm (5.1 - 5.7 ft-lb)
Enclosure Warranty: 3 Years
Certifications: UL9540, UL9540A, UL1973, CEC, SGIP
