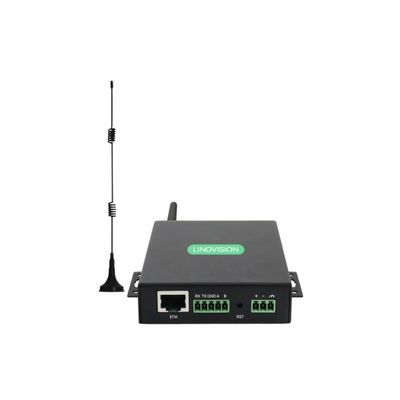

LINOVISION - Model IOT-R51W -Industrial 4G LTE Cat4 Cellular Router
Industrial 4G LTE Cat4 cellular router. Working with most cellular carriers (Verizon, AT&T, T-Mobile) with bands at B1/B2/B3/B4/B5/B7/B8/B9/B12 /B13/B17/B18/B19/B20/B25/B26/B28/B66. WLAN for hotspot or WAN. 1 ethernet ports. Support virtual SIM (Cloud SIM) mode, flexible to switch from wireless carriers remotely. Also, support physical SIM card (higher priority when SIM card is inserted). DC 6 -35V inputs, max 6W. With RS232/RS485 and MQTT protocol, it can be used to remotely connect and control serial devices (such as IoT sensor, PLC machine, RS485 controller, etc) to the IoT cloud from anywhere.
Most popular related searches
- 4G : LTE FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66
- LTE TDD: B34/B38/B39/B40/B41
- 3G : WCDMA/HSPA: B1/B2/B4/B5/B8
- GSM : GSM/GPRS/EDGE: B2/B3/B5/B8
- Processor : Industrial grade 32-bit processor
- DRAMCapacity : 64MB (expandable to 128MB)
- FlashCapacity : 16MB(expandable to32MB)
- Operating System : PanGu OS(Linux-based fully customizable)
- SIM/UIMCard Interface : Standard drawout interfaceSupport 1.8V/3V SIM/UIMcardBuilt-in 15KV ESD protection
- Serial port : 5PIN terminal connector
- Hardware version.A: 1*RS232/RS485 (choose RS232 or RS485 as needed, can not be connected at the same time)
- Hardware version.B: 1*RS232?1*RS485
- Support MQTT protocol
- Ethernet interface : 1*FE LAN 10/100Mbit/s adaptive, built-in 1.5KV magnetic isolation protection
- Wi-Fi : Support IEEE 802.11n b/g/n 2.4GHZ
- Support AP/Client mode
- Support open system, shared key, WPA/WPA2 authentication
- Support WEP/TKIP/AES encryption
- Antenna : 2 external antenna interfaces (standard SMA female connector, 50 ohm characteristic impedance), 1 4G antenna, 1 WiFi antenna (optional)
- LEDIndicator : PWR*1ETH*1SYS*1NET*1
- Power Interface : Terminal power base, built-in power reverse phase protection and overvoltage protection
- Reset Button : Through this button, the parameter configuration of the device can be restored to the factory value
- Real Time Clock : Built-in RTC, battery powered
- Standard Power Supply : DC 12V/1A
