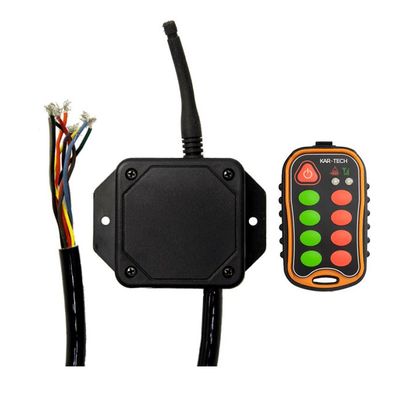

Kar-Tech - Model 3A2031D - Industrial 8-Button Micro Control System
The MICRO controls are supplied as a matched pair system - transmitter and receiver, with spare transmitters available. The MICRO system will be supplied as a programmable version so that the user can select the number of outputs, whether each output is momentary or maintained, an E-Stop mode, and an optional “dump” output - this can be set to turn on every time any (selectable) function is activated at the transmitter, or stay on as long as the transmitter is on. System is supplied pre-configured as 8 momentary outputs. “Dump” or E-Stop functionality is always on the 8th output, and can only be used with up to seven normal outputs.
8 Button MICRO Transmitter
Programmable eight button MICRO transmitter, pre-synchronized to the receiver, including internal rechargeable lithium polymer batteries that charge over a micro USB connection.
This programmable eight-output MINI receiver receiver serves as a replacement for many of our small handheld systems. It is user-configurable up to 8 outputs in any combination of momentary or maintained outputs plus programmable “dump” output.
- Height: Transmitter: 2.80" / Receiver: 2.50"
- Weight: 1.000000
- Width: Transmitter: 1.75" / Receiver: 2.50"
- Depth: Transmitter: .60" / Receiver: 1.00"
- Transmitter Buttons: 9
- Receiver Power: 9 VDC – 30 VDC
- Receiver Outputs: 8 solid-state on/off; 5 Amps maximum each; protected
- Display: N/A
- LEDs: 2
- Battery Type: Lithium Polymer
- Battery Life: 40 hours between charge
- Charging: Micro USB
- Frequency: 900MHz FHSS
- Range: Up to 300` Nominal
- Housing Material: Glass-Filled Nylon
