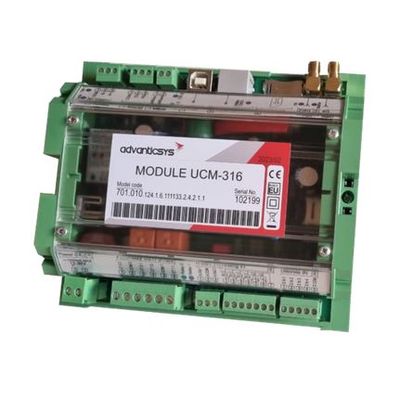

Advanticsys - Model UCM-316 -Industrial IoT Gateway

SHARE

The UCM-316 is a highly versatile controller that integrates multiple communication protocols, supports a wide range of inputs/outputs, and provides real-time data logging capabilities. Designed for industrial applications, smart metering, and IoT projects, it features 4G connectivity for remote monitoring and management, making it ideal for distributed environments.

Most popular related searches
energy meters
overvoltage protection
energy meter
energy metering
overvoltage
power generation
relay controller
distributed generation
4G Connectivity
Global 4G communication for real-time remote monitoring and management.
Industrial Protocol Support
Supports Modbus RTU, Modbus TCP/IP, and M-Bus, ensuring compatibility with legacy industrial systems.
Flexible I/O Options
Supports 6 analog inputs, 4 digital inputs, and 2 relay outputs for comprehensive control and data acquisition.
MQTT Cloud Compatibility
Full MQTT support, enabling easy integration with any cloud service for IoT applications.

Real-time Data Logging: Records timestamps using an integrated RTC, synchronized through NTP.

Multiple Communication Interfaces: RS232, RS485, USB, Ethernet, and global 4G connectivity for flexible integration.

M-Bus Master: Supports up to 20 M-Bus devices for energy metering.

I/O Capabilities: Includes 6 analog inputs (current, voltage, resistance, or temperature probes) and 4 digital inputs (contact, impulse counter, alarm).

Relay Outputs: Up to 2 relay outputs (230VAC, 3A) with automatic weekly scheduling.

Analog Outputs: Dimmer functionality with 2 analog outputs (0-10V).

Data Storage: Comes with 8GB microSD card for local data storage and transfer via FTP in CSV format.

Remote Configuration and Updates: Manage and update devices remotely through 4G connectivity.

Supported Protocols: Modbus RTU, Modbus TCP/IP, M-Bus, MQTT, and FTP (server/client).

General

  • Power supply: 9 – 36VDC
  • Overvoltage protection: >1000V (max. 5 sec)
  • Consumption:
  • Internal battery: 3.7V, 750 mAh

Processing and Storage

  • CPU: Cortex M4
  • Flash memory: 8MB (up to 5 years storage)
  • External storage: 8GB microSD card

Communication Interfaces

  • RS232: Up to 15m, speed up to 57600 bps
  • RS485: Up to 1.2 km, speed up to 57600 bps
  • M-Bus: Supports up to 20 devices
  • USB: Type B, version 2.0
  • Ethernet: RJ45, 10/100 Mbps, range up to 100m
  • Global 4G Communication: GSM (850/900/1800/1900 MHz), WCDMA (B1/B2/B4/B5/B6/B8/B19), LTE-FDD and LTE-TDD supported bands

Inputs/Outputs

  • Digital inputs: 4 sink/contact inputs
  • Relay outputs: 2 relay outputs (NO/NC, 230V AC, 3A)
  • Analog inputs: Current: 0/4-20mA (error 0.15%), Voltage: 0-10V (error 0.15%), Temperature: PT100 or PT1000 sensors
  • Analog outputs: 2 voltage outputs (0-10V, load up to 5mA)

Supported Protocols

  • Modbus RTU, Modbus TCP/IP, M-Bus, MQTT, FTP (server/client)

Working Conditions

  • Operating temperature: -25°C to +60°C
  • Storage temperature: -40°C to +60°C
  • Humidity range: 5% to 95% (non-condensing)
