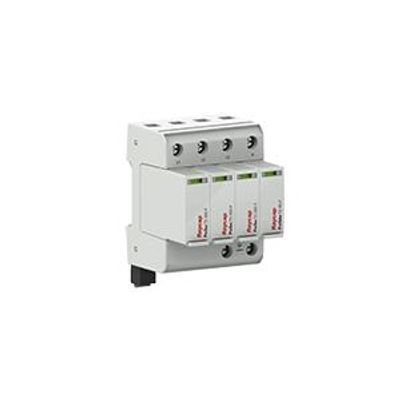

ProTec Series - Industrial Surge Protection Device Solutions

FromRaycap
SHARE

ProTec industrial SPD solutions offer a variety of surge protection technologies including gas discharge tube (GDT) and metal oxide varistor (MOV).  The products are available in VDE (Type 1+2) and UL (Type 1CA) certified. Products feature a new industrial design with pluggable modules for easy replacement, vibration and shock withstand capacity, a patented module locking mechanism, and a wide variety of operating voltages to fit any low voltage power protection need.

Most popular related searches
surge protection system
surge protection
gas discharge tube
metal oxide varistor
low voltage power
surge protective device
industrial surge protection
low voltage protection

  • Hybrid and ADV ProTec versions are also available
  • ProTec PV is available in both T1 and T2 versions for DC applications up to 1500 V
  • ProTec ZP is busbar mountable and available in T1 and T2 for AC applications up to 1500 V

ProTec T1 Features

  • Class I+II SPDs
  • Iimp of 12.5kA using a single MOV
  • 1 TE pluggable module
  • Available in a wide variety of operating voltages (75V to 750V)
  • Sensitive and reliable state of the art disconnector
  • High Surge Current capability, Imax = 50kA
  • Backup fuse up to 315 A gG
  • Short circuit current rating up to 50kA
  • Vibration and shock withstand capability
  • VDE-IEC (Class I+II) and UL (Type 1CA) certificate

ProTec T2 Features

  • Class II SPDs
  • In of 20kA
  • 1 TE pluggable module
  • Available in a wide variety of operating voltages (75V to 750V)
  • High Surge Current capability, Imax = 50kA
  • Backup fuse up to 315 A gG
  • Short circuit current rating up to 50kA
  • Vibration and shock withstand capability
  • VDE-IEC (Class I+II) and UL (Type 1CA) certificate

Hybrid Technology Protec T1H-300 Features

  • Leakage Free Solution, Class I, Iimp = 12.5 kA, Up = 1.5 kV
  • TOV immunity
  • VDE-IEC (Type 1+2) certificate for Uc = 300V
  • High Surge Current capability, Imax = 65 kA
  • Pluggability
  • Vibration and shock withstand capability
  • Sensitive and reliable state of the art disconnector
  • Backup fuse up to 315 A gG
  • Short circuit current rating up to 50 kA
