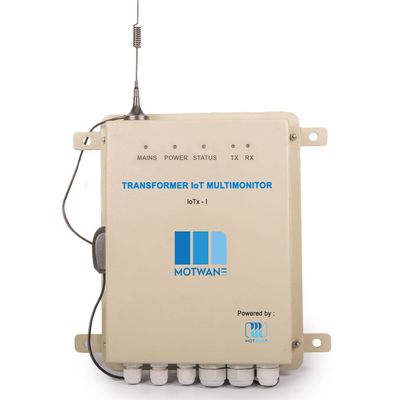

Motwane - Model IoTx-I - Industrial Transformer Monitoring Device
IOTX-I is a transformer monitoring device that needs to be installed near a transformer to measure its vital parameters such as RYB voltage and current, oil temperature, winding temperature, and protection relay status. Through the Motware platform, one can easily monitor the streaming parameters of the transformer. The Motware platform allows you to do predictive analysis of the dynamic copper loss, hot spot temperature, aging rate, and the residual life of the transformer. The device includes a GSM module to transmit the data to our cloud-based Motware application every 5 minutes, or as per the customer specified, transfer rate depending on the set parameters. The data transferred is stored in the memory of the device. In the event of a network failure, it will transfer the data back to the cloud once the network is established. The device operates in mains and battery and comes with a geotagging facility.
Application
The IoTx-I transformer monitoring device is a digital wireless and reliable solution, which is designed to monitor the distribution/transmission of the transformer’s parameters. It helps to overcome the limitations of the current conventional transformer monitoring systems by sending real-time data to the Motware IoT platform. It helps to review the transformer’s parameters at regular intervals to help in easy predictive analysis and preventive maintenance. Transformer losses can be acutely monitored and streamed over a GSM network that is connected to the cloud-based Motware application. The user can make productive and informative decisions based on the data captured in the transformer monitoring device. The Motware application provides alerts based on the limits applied on the streamed parameter values to avoid any damage.
Our solution can be used for various segments like:
- Utilities,
- Transformer OEMs
- Industries
- Commercial premises
- Railways and Metro
Features
- Online streaming of transformer’s parameters
- Geotagging of the device
- Detection of protection relay status change and alerts through email/SMS
- Real-time alerts and notifications
- Centralized monitoring of the transformer data
- Trend monitoring and predictive analysis based on monitored parameters
- Seamless integration to existing equipment
- Dynamic copper loss, hotspot temperature, aging rate, and residual life
Power supply
Mains Power supply : 90-528VAC Frequency 50/60Hz with OVP & OCP
Battery power : Rechargeable Battery 14.8V,2600mAh
Features
Type of measurement
- 3 phase Current (R, Y, B) LV
Range:1A/5A as per measurement CT secondary, Resolution: 0.1
- 3 phase-neutral Voltage (R, Y, B) LV*1
Range:230 VAC +/- 10%, Resolution:0.1
- Oil Temperature
Range: 0-150 0C (Customisable as per the customer’s requirement), Signal type:4-20mA
Resolution:0.1
- Winding temperature
Range: 0-150 0C (Customisable as per the customer’s requirement), Signal type:4-20mA
Resolution:0.1
- Oil Level (High/low)
Range: The Oil level low-level indication is set 25% below the transformer conservator tank. Oil level high set above 25% of the transformer conservator tank, Signal type:0-5V
- Panel temperature up to 2 panels*2
Range: 00C to 1000C OR -200C to 800C, Signal type:4-20mA
OR
- Panel Humidity up to 2 panel*2
Range: 0 to 100% RH, Signal type:4-20mA
- Ambient temperature and Humidity
Range: 0-50 ?,20-90%RH, Accuracy-±5%RH/±2?
Type of Indication
- OLTC Tap change indication up to 35 Tap*3 , Signal type:4-20mA
- GPS Location (Latitude & longitude)
- Alarm/trip status : 24V DC to 125V DC voltage level can be applied to each channel. The Alarm/Trip status will show as Healthy/Operated on the Motware application
- PRV (Pressure relief valve) Trip status
- OSR (Oil surge relay) Alarm/Trip status
- Gas Operated Relay Alarm/Trip status
- Buchholz Alarm/Trip status
- OTI (Oil temperature Indicator) Alarm/Trip status
- WTI (Winding Temperature Indicator) Alarm/Trip
- MOG (Magnetic Oil Level Gauge) Alarm/Trip status
- Capacitor Bank ON/OFF status
- Outgoing Feeder ON/OFF status, up to 4 feeders
Controller
- Microcontroller :32bit ARM running at 72MHz
- Real time clock : Battery backed internal RTC
- Memory : Data can store up to 2 days depends on the time interval
Protection on input channels
- 3 phase voltage i/p channel protection: Surge protection
- Temperature i/p channel protection: ESD, EFT, Surge protection
- Alarm/trip channel protection: Surge protection, OPTO isolation
Communication
- Communication wireless: GSM/GPRS
- Frequency range : 850Mhz/900Mhz/1800Mhz/1900Mhz
- Supported SIM card type:2G/3G
- GPS: Operating frequency:1575.42±1 MHz
Indication
- Display type :16×2 LCD
- Display colour : White on Blue background
- LED Indicators : RYB phase indication, Status, Power Indication, Data Transmit/Receive Indication
Mechanical
- Enclosure material : Metal MS CRCA sheet
- Mounting mode : Wall mount/Pole mount*4
- Weight : 6Kg Approx.
- Dimension : 480(L)x127(W)x405(H) mm Approx.
Environment
- IP Degree of protection: IP65
- Operating temperature range: -10 0 C to 55 0 C, Relative Humidity: < 95% RH Non-Condensing.
- Storage temperature range: -20 0 C to 70 0 C
Accessories
- Standard Mounting Bracket
Note: *1 PT output will be required for higher rated voltage levels
*2Panel Temperature OR Humidity –anyone of the parameter will read per panel.
*3 Tap positions are interfaced with the device through the Tap position indicator which is connected to the power transformer with OLTC.
*4 Mode of mounting needs to be specified at the time of ordering.
