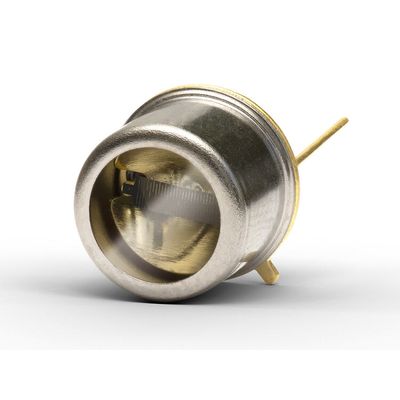

Infrasolid - Model HIS550R-AA -Thermal Infrared Emitter with Sapphire Window and Argon Gas Filling
HISbasic series emitters have an integrated gold plated reflector that directs the radiation emitted from the rear to the front in order to achieve maximum efficiency. All our emitters offer minimum drift at constant resistance (Ohm). Infrasolids IR emitters are characterized by a very low temperature coefficient of electrical resistance. Therefore the hot resistance and the cold resistance are almost identical which eases the electrical control of the IR sources. Infrasolid’s infrared radiation sources are pulsable thermal emitters with a near black-body emittance. Based on a patented nanotechnology and a patented emitter set-up made of a high-melting metal, the free-standing monolithic radiating element and the nanostructured emitter surface offer numerous advantages in many applications.
- Parameter: HIS550R-AA
- Package: TO-39 / TO-5
- Radiating element area: 11 mm²
- Radiating element emissivity: > 0.9
- Radiating element temperature: 600 °C at 600 mW
- Optical output power: up to 140 mW
- Max. electrical power (DC): 630 mW
- Max. electrical voltage: 3.7 V
- Max. electrical current: 170 mA
- Electrical resistance: 21...23 Ω
- Modulation frequency: 4 Hz*
- Filter/Window: Sapphire (soldered)
- Wavelength range: 2 to 6 µm**
- Filling gas: Argon
* 50 % modulation depth, square wave signal, 50 % duty cycle
** depending on filter transmissivity
Thermal infrared emitter with gold plated reflector and Winston cone collimator
- Package: TO-39/TO-5 with integrated reflector
- TO39-Cap with soldered sapphire window
- Hermetically sealed: tested to 10-8 mbar*l/s
- Filling: Argon
- Emitter area: 11 mm²
- Pulsable thermal black-body infrared source mounted in an industry standard TO-39/TO-5 package.
- Patented nanostructured radiating element achieves up to 500% more detection signal!
- Lower radiating element temperature of 600 °C increases lifetime!
- Wide wavelength range enables a broad range of applications.
