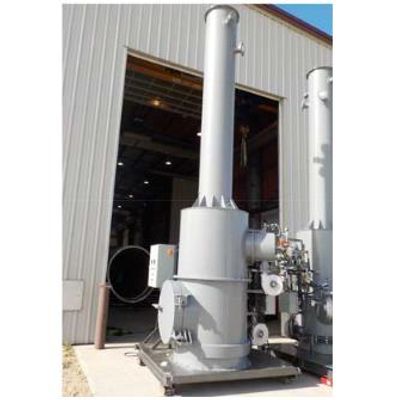

Infratech - Solid / Liquid Waste Incinerators
From Other Products
Infratech's combustion group offers solid & liquid waste incineration packages, suitable for reducing any type of solid or biomedical waste. We will work with you towards standard configuration models or custom designs according to your waste characteristics and any specific client requirements or specifications.
Models
Incinerator Model 25
- Reduction Capacity: 16 kg/hr (35 Ib/hr) to 30 kg/hr (66 Ib/hr)
- Shipping Dimensions: 4,115 mm (13'-5') long x 2,261 mm (7'-5') wide x 2,464 mm (8'-l') high (stack shipped separately)
- Weight:4,500 kg (9 920 lbs)
Incinerator Model 40
- Reduction Capacity: 25 kg/hr (55 Ibs/hr) to 40 kg/hr (88 Ibs/hr)
- Shipping Dimensions: 3,658 mm (12'-0') long x 1,981 mm (6'-6') wide x 2,840 mm (9'-3 13/16') high (stack shipped separately)
- Weight: 7000 kg (15 400 lbs)
Incinerator Model 100
- Reduction Capacity: 40 kg/hr (88 Ibs/hr) to 75 kg/hr (165 Ibs/hr)
- Shipping Dimensions: 5,029 mm (16'-6') long x 2,134 mm (7'-0') wide x 3,000 mm (9'-10 1/18') high (stack shipped separately)
- Weight: 10 000 kg (22 000 lbs)
Incinerator Model 200
- Reduction Capacity: 80 kg/hr (176 Ibs/hr) to 150 kg/hr (330 Ibs/hr)
- Shipping Dimensions: 6,096 mm (20'-0') long x 2,438 mm (8'-0') wide x 3,458 mm (ll'-4 1/8') high (stack shipped separately)
- Weight: 12 500 kg (27 000 lbs)
Incinerator Model 500
- Reduction Capacity: 175 kg/hr (385 Ibs/hr) to 300 kg/hr (660 Ibs/hr)
- Shipping Dimensions: 7,010 mm (23'-0') long x 2,743 mm (9'-0') wide x 3,883 mm (12'-8 7/8') high (stack shipped separately)
- Weight: 19 000 kg (41 800 lbs)
Standard Design Features
- Skid mounted, packaged & fully contained
- Castable refractory lined stack
- Choice of fuel supply (diesel, natural gas or LP fuel)
- Burners with flame safety & management systems
- Safety & remote interlocks; one button automated operation
- Destruction efficiencies exceeding 99%
- Adjustable burn down times & operating temperatures
- Contact us to find out about the many options & configurations that we have to offer.
Custom Options & Configurations
- Standard, Vertical, Horizontal, Trailer Mounted or Pre-installed within a customized Sea Container
- Semi-Automatic Ram Feeder, Bin Tipper, Automatic Ash Removal
- Diesel Day Tank, Waste Oil System w/Tank, Sludge Injection System w/Tank
- Flue Gas Scrubbing packages. Fully Dry systems utilizing Sodium Bicarbonate and Activated Carbon Reagent, or Wet systems utilizing Caustic Reagent
- Waste Heat to Power Generation packages
