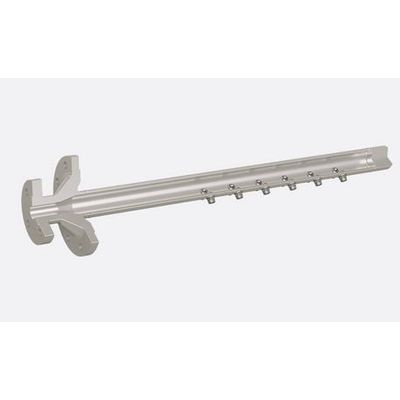

Hora-Holter - Injection Lances Valve
Injection lances are the ideal choice for cooling steam in temperature ranges up to 530 °C. Cooling water is delivered through a lance to robust nozzles in the steam pipe. These nozzles ensure reliable mechanical atomisation for consistent cooling performance. With an external control valve, such as the HORA Heavy Duty, the cooling water volume can be adjusted with pinpoint accuracy. A constant pressure differential guarantees uniform water distribution, while the streamlined design, free from moving parts, minimises maintenance requirements.
Renowned for their durability, our injection lances are built for long service life. They are perfectly suited for use in industrial facilities, power plants, and the process industry. They are particularly suited for applications with steady or moderately variable loads, delivering precise performance and enhanced efficiency.
Industries
- Medium : Water, Steam
- Nominal size steam pipe : DN 100 - DN 1200 // NPS 4 - NPS 48
- Nominal size water connection : DN 25 - DN 50 // NPS 1 - NPS 2
- Nominal size steam connection : DN 80 - DN 150 // NPS 3 - NPS 6
- Pressure Rating : up to PN 160 // Cl 600
- Temperature Range : up to 530 °C
- Body Material : 1.7335, 1.7383, SA182 F12, SA182 F22
- Kvs : Customer-Specific
- Connection : Flange (EN, ASME)
- Certification : CE, UKCA, CRN, ASME
