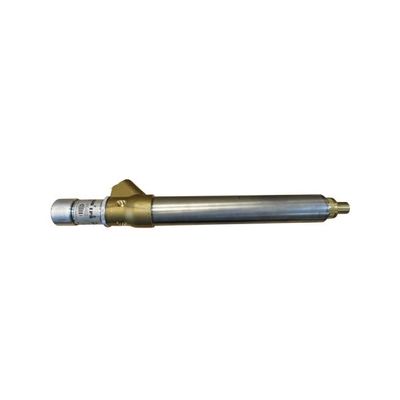

Injektorking - Model Vario -Go-to Fill Injector

By maximum setting on our injectors, air consumption is less than half of the air consumption of most other major suppliers of injectors.

• Stepless variable adjustment of the air volume, means that you never need to introduce more air, than you need to fill the mould
• Consequently you reduce the need for venting of the mould
• Change tip in only 30 sec. to another diameter. Tips are available in sizes from 18-36 mm
• Built-in "blow back on time" after closed function* to ensure a smooth production without unnecessary stops.

Vario EPS:

• Very low-energy fill injector with adjustable air/vacuum setting
• Enables you to optimize your energy consumption, while still having a very good filling
• Perfect for all regular EPS moulding tasks

Vario EPS Power:

• The fill injector designed for more demanding tasks
• Low air consumption and even higher vacuum ensures a good filling of all difficult parts
• Also for higher densities of EPS

Vario Turbo/Combi (T/C):

• The fill injector for all materials and densities - EPS, EPP, Arcel, Neopor etc.
• Same air/vacuum profile as the Vario EPS Power ensures a very good and fast filling

Designed for use with pressure filling systems, allowing optimal filling, also of thin-walled sections.
To change all wear parts (2 seals) takes only 3 minutes per injector, and to change the U-seal, which is the only seal inside the steam chamber takes 15 seconds.

All parts are dismounted by hand without use of special tools. Quick clamp for material hose available. Standard for 22 (7/8"), 25 (1") and 32 mm (1 1/4") hoses.

* The "Blow back on time" function: makes sure to empty the internal Injector space after closure of the tip. This function ensures that no material melts or gets stuck inside the Injector barrel in case any steam should slip into the Injector.
