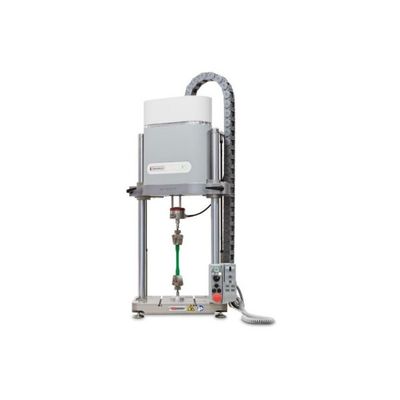

Instron ElectroPuls - Model E1000 - All-electric Test Instrument
The ElectroPuls E1000 is a state-of-the-art, all-electric test instrument designed for dynamic and static testing on a wide range of materials and components. It includes Instron® advanced digital control electronics, Dynacell™ load cell, Console software, and the very latest in testing technology – hasslefree tuning based on specimen stiffness, electrically operated crosshead lifts, a T-slot table for flexible test set ups and a host of other user-orientated features. Powered from a single-phase supply it requires no additional utilities for basic machine operation (for example, pneumatic air, hydraulics, or water).
Most popular related searches
- Patented, oil-free linear motor technology for clean conditions
- Designed for both dynamic and static testing on a variety of materials and components
- High dynamic performance, capable of operating at over 100 Hz
- ±1000 N dynamic load capacity and ±710 N static load capacity
- Electrically powered from single phase main supply, no need for hydraulic or pneumatic air supplies
- Temperature-controlled air-cooling system
- High-stiffness, precisionaligned twin column load frame with actuator in upper crosshead
- Versatile T-slot table for regular and irregular grips and specimens
- Compact instrument - frame requires less than 0.15 m² (1.6 ft²) of desk space
- Dynamic Capacity ±1000 N (±225 lbf)
- Static Capacity ±710 N (±160 lbf)
- Stroke 60 mm (2.36 in)
- Load Weighing Accuracy ±0.5 % of indicated load or ±0.005 % of load cell
- capacity, whichever is greater
- Daylight Opening 610 mm (24 in) maximum with actuator at mid stroke
- Configuration Diagonal twin-column with actuator in upper crosshead
- Mounting Tabletop: Vertical (Horizontal with optional mounting kit)
- Lift and Locks Electrically powered lifts with manual lever clamps
- Load Cell ±2 kN Dynacell™ mounted to base
- Weight 92 kg (202 lb) [frame only] 40 kg (88 lb) [controller]
- Electrical Supply
- 100 VAC to 140 VAC 20A single phase 50/60 Hz
- 220 VAC to 240 VAC 10A single phase 50 Hz
- Cooling Temperature-controlled air cooling
- Operating Temperature +10 to +30°C (+50 to +86°F)
