Instrotech - Model 1684-GEN -Fire Truck Liquid Level Systems

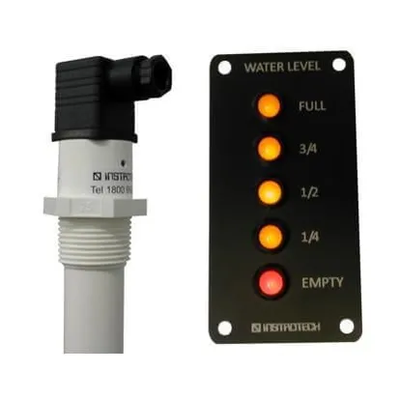

Model 1684-GEN Fire Truck tank level systems for fire appliances are comprised of tank sensors and one or more remote display controllers. These fully digital self-checking systems have no moving or corrosive parts.
The solid state sensors may be calibrated for Water and Class A and Class B fire fighting foam concentrates. Levels are programmed into the sensors by means of a computer or with the hand-held battery powered setter.
There are versions supplying alarm outputs for sirens and strobes with automatic or manual alarm acceptance as well as test functions. Special systems and customised displays are made to order. Various Water and Foam systems are made for the CFA (VIC), CFS (SA), FESA (WA), MFS (SA), RFS (ACT), RFS (NSW) and the RAAF in Australia. Some typical systems are detailed in the data sheets linked here.
- No floats or moving parts
- Non-corrosive materials
- Microprocessor control
- Self-integrity checking
- Sunlight viewable LED displays
- Optional automatic dimming in low light
- Easy to fit to new or existing tanks
- Panel or surface mount displays
- Fully encapsulated electronics
- IP68 environmental protection
- Low level warning and outputs
- Switching for audible and visual alarms
- Overcurrent and overvoltage protection
- Made in Australia
