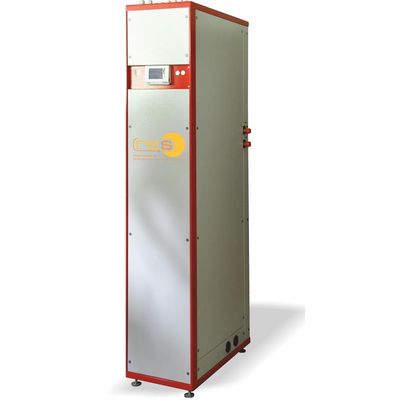

Res - Model solWP-S integral -Integrated Energy Station

Output > 4.0 kW to 16.6 kW

The brine-water heat pump (Max-S F12), which is integrally included in the res-solWP-S, uses as heat sources: res-PV++ PVT collector, additional geothermal, ice storage or groundwater

Heat pump (Max-S CF12)

• Filled with CFC-free refrigerant R410A
• Use of strongly fluctuating sources possible
• maximum flexibility thanks to speed-controlled inverter operation
• variable-speed power compressor of the latest rolling piston technology for flexible power control
• for own electricity utilisation from PV / PVT systems
• Development Sources in the range of -10 to +15°C
• optimal for low-temperature-compatible collectors such as PVT modules res-PV++
• Operating temperatures up to 62°C possible

Hydraulic management (res-EnergieManager)

• includes and links the entire hydraulics of the plants heat source, heating circuit management, hot water
• ensures maximum use of the buffer volume

Electronic control (res-solControl)

• regulates the required pre- and return temperatures of all components via pumps, mixers and controllers
• Reliably selects the most efficient operating mode
• Smart grid capable
