Res - Model solWP-H integral -Integrated Energy Station

Output > 4.0 kW to 16.6 kW

The res-solWP-H integrally contained hybrid heat pump (Max-Air F12) gains thermal energy from different media (breast and air).
res-solWP-H integral are ideal for smaller properties or if earth or ice storage is not possible.

Heat pump / inner part (Max-Air CF12)

• easy installation, thanks to pre-assembly
• Active cooling via the heating circuits in summer
• Filled with CFC-free refrigerant R410A
• maximum flexibility thanks to speed-controlled inverter operation
• variable-speed power compressor of the latest rolling piston technology for flexible power control
• for own electricity utilisation from PV / PVT systems
• Development of sources in the range of -10 to +15°C
• optimal for low-temperature-compatible collectors such as PVT modules res-PV++ in combination with air
• Operating temperatures up to 62°C possible

Hydraulic management (res-EnergieManager)
Electronic control (res-solControl)
See above at res-solWP-S integral

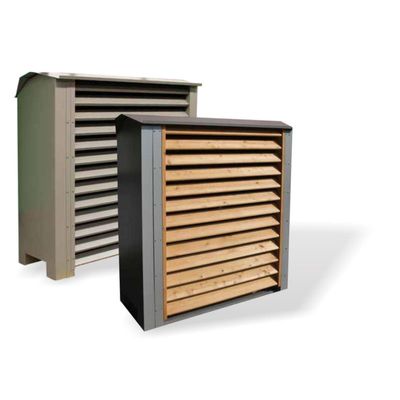

Outdoor equipment (Max-Air CF12)

• small outdoor space requirements
• flexible as far as the place of assembly is concerned, up to 20 meters distance / line length to the building
• extremely low outside noise
• no low-frequency humming outdoors
• no risk of frost for water pipes – only the refrigerant is used in outdoor use
