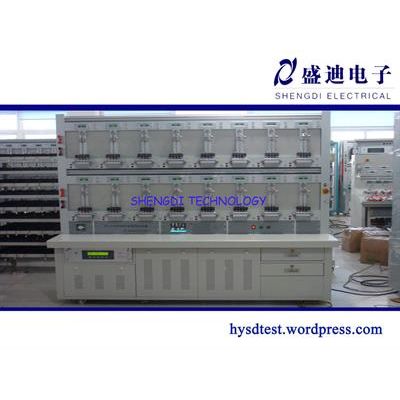

Shengdi - Model HS-6103F - Integration Double Loop Single Phase Energy Meter Test Bench
No. Of test seats:24 meters & 48 meters. & 16 Meters. Can test both mechanical and electronic meters. Accuracy Class: 0.05 IEC standard. Reference meter: 0.05% accuracy class. Multiplex voltage trnasformer accuracy class:0.01,rated load per seats:10VA. Current connect type: Dual loop :1-4,3-2. Dual Loop means: Neutral wire and Live wire.
Most popular related searches
single-phase energy meter
energy meters
energy meter
energy metering
power stabilization
load current
voltage stabilization
voltage stabilizer
power testing
power test
- Output Voltage: 220V or 240V; Adjustment range: 0-120%; Adjustment resolution: 0.01%
- Output Current Range:0-100A;Adjustment range: 0-120% Adjustment resolution:0.01%
- Phase Angle Range: 0-360deg; Adjustment resolution: 0.01 deg
- Frequency: 45Hz-65Hz,Resolution:0.01Hz.
- Output wave distortion (both voltage and current): <0.5%
- Output voltage,current,and power stability: <0.05% /180s
- Output capacity:Current:1000VA(120A);Voltage:400VA(24 seats) Current:2000VA(120A);Voltage:800VA(48 seats)
- Load characteristics: resistive, inductive, and capacitive (<4uF)
- Harmonic Wave Output :
- 2 ~ 21 sub-harmonic wave Contents of Harmonic Wave < 40%
- 3, 5, 7 sub-harmonic wave coupling, contents of each harmonic wave <10%
- Phase angle control (odd sub-harmonic wave)
- Wave group control (sub-harmonic wave)
- Testing functions:accuracy testing,creep testing(no load testing),starting
- Up testing,harmonic testing,repeatability testing,influencing testing,dial testing etc.
- Power supply: 240V, 50Hz. (Or others you want)
