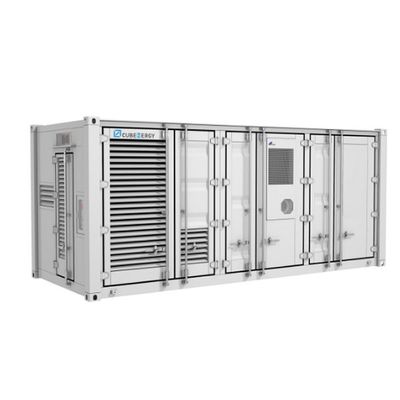

PowerCombo - Model 20C1H500K -Intelligent Energy Storage System

SHARE

PowerComPowerCombo-20C1H500K is a intelligent energy storage system with nominal power of 500kW and capacity of 552kWh, which is ideal for most of C&I application as easy to maintenance. With modular & all-in-one design, 8 sets of S138 battery string, PCS, transformers, fire fighting system, environmental control system and BMS are integrated inside a 20ft container. By deployment, it is widely applied in demand management and construction of microgrid.bo-20C1H500K.

Most popular related searches
energy storage system
lithium iron phosphate (LFP)
energy storage
lithium iron phosphate
energy management
power grid voltage
firing system
power generation
voltage data
power grid
  •  Adopts TOU/PDS/ADR energy management strategies;
  •  Variety of communication interfaces support wide-range equipment access and instant data response;
  •  Three-tier monitoring and management mechanism of BMS to improve system efficiency;
  •  Advanced environment control technology and optimized air duct design, with the temperature difference between batteries is less than 5?;
  •  Provides status notifications, alarm alerts and real-time response protection strategy in cases of emergencies, to ensure system reliability and safety;
  •  Highly integrated and modular design lower the effort and cost of installation and maintenance;
  •  UL9540A, UL1973, IEC62619, CE, UN38.3 certificated.
  • DC Data :
    • Cell type : Lithium Iron Phosphate (LFP)
    • Cell life cycle : 80% Retention with 5,000 Cycles @ 1C 25?
    • Cell spec : 3.2V/90Ah
    • Rack rated energy capacity : 552kWh
    • Rated voltage : 768V
  • AC Data :
    • Rated AC power : 552kWh
    • Rated grid voltage : 400V/480V
    • Maximum AC power : 550kW
  • General Data :
    • Dimension w/o clearances(L*W*H) : 6,058*2,591*2,438mm
    • Weight of whole system : <13.5t
    • Degree of protection : IP54
    • Operating temperature range : -20 ~ 40 ?
    • Max working altitude : 3,000m/9,842ft
    • Communication interfaces : RS485, Ethernet, GPRS
    • Certificates : UL1973, UL9540A, IEC62619, CE , UN38.3
