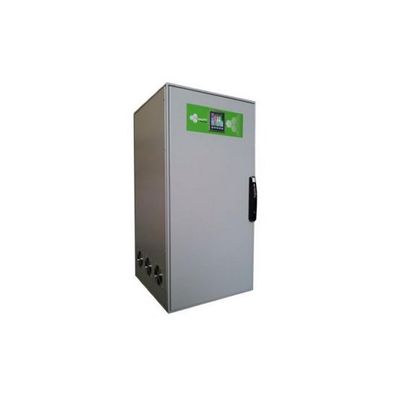

Noblegen - Model Maximus-Lite -Intelligent Gas Generators
‘Maximus-Lite’ is the latest range of Nitrogen PSA Industrial Gas Generators from Noblegen Products. Utilising the reliable and efficient PSA technique of separating Nitrogen and Oxygen is used to produce high quality Nitrogen Gas at various flows and purities (see performance data sheets). The Generators are controlled using the latest in HMI touch screen technology to display the process in real-time, inlet / outlet pressures, Trend graphs and much more......
‘Maximus-Lite’ Nitrogen Generator range from Noblegen Products is your reliable and efficient alternative to conventional high pressure cylinder and liquid gas supplies. Taking away the on-going costs, safety considerations and transportation of traditional gas supplies, the ‘Maximus-Lite’ on-site Nitrogen systems are some of the most advanced and intelligent available. The control system gives the user all the information necessary to ensure an efficient and consistent supply of gas is always available. From the process to flow and alarms, including auto-start / stop function, Trend graphs, service alarm and service records page, there is simply no other laboratory nitrogen system quite like Maximus-Lite.
The ‘Maximus-Lite’ is one of the most economical range of nitrogen generators on the market for both purchase price and on-going running / maintenance costs. Together with our unrivalled experience and knowledge of nitrogen gas generators with 1000’s running world-wide supported by our national and international partners.
- Range of Flow-rates
- Air Compressor available
- Compact and Quiet design
- Purity 99.9995% - 95%
- Oxygen Analyser as standard
- Auto-run facility
- Energy saving mode
- Outlet flow indicator (% flow)
- Trend graphs into MS excel
- Alarms with help menu
- Audible alarm sounder
- Remote access via internet
- Pharmaceutical & Laboratory
- General laboratory
- LC/MS
- Fume cupboards
- Food packaging
- Soldering
- Ambient Temp Range 5-45 °C (41-113°F)
- Air Inlet Pressure 7-10 bar g (101.5-145 psi g)
- Nitrogen Outlet Pressure* Up to 9 bar g (130.5 psi g)
- Air Inlet Requirement
- Dew-point -40 °C (-40 °F)
- Particulate: <0.1 micron
- Oil: <0.01 mg/m 3
- Electrical Supply 230v a.c. / 1ph / 50-60Hz
- 115v a.c. / 1ph / 50-60Hz
- Socket Inlet IEC type C14 (fused) 10A max
- Inlet / Outlet Connections 1/2” BSPP x 2
