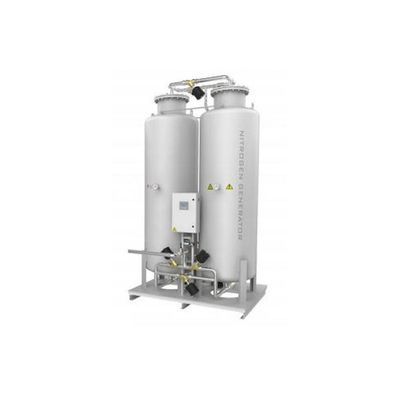

Noblegen - Model MAGNA PSA -Intelligent Gas Generators
‘‘MAGNA’ is the latest range of Nitrogen PSA Industrial Gas Generators from Noblegen Products. Utilising the reliable and efficient PSA technique of separating Nitrogen and Oxygen is used to produce high quality Nitrogen Gas at various flows and purities (see performance data sheets). The Generators are controlled using the latest Siemens HMI touch screen technology to display the process in real-time, inlet / outlet pressures, Trend graphs and much more.
‘MAGNA PSA’ Nitrogen Generator range from Noblegen Products is your reliable and efficient alternative to conventional high pressure cylinder and liquid gas supplies. Taking away the on-going costs, safety considerations and transportation of traditional gas supplies, the ‘Maximus’ on-site Nitrogen systems are some of the most advanced and intelligent available. The control system gives the user all the information necessary to ensure an efficient and consistent supply of gas is always available. From the process to flow and alarms, including auto-start / stop function, Trend graphs, service alarm and service records page, there is simply no other laboratory nitrogen system quite like MAGNA.
The ‘MAGNA’ is one of the most economical range of nitrogen generators on the market for both purchase price and on-going running / maintenance costs compared to multi-bank modular systems. Together with our unrivalled experience and knowledge of nitrogen gas generators with 1000’s running world-wide supported by our national and international partners.
- Range of Flow-rates
- Air Compressor available
- Siemens PLC as standard
- Purity 99.9995% - 95%
- Oxygen Analyser as standard
- Energy saving mode
- Remote start / stop relay
- Alarms with help menu
- Audible alarm sounder
- Remote access via internet
- Data looging via USB interface
- Pharmaceutical & Laboratory
- Laboratory ringmain supply
- Oil & Gas applications
- Wine Sparging
- Food packaging
- Soldering
- Laser Cutting
- Ambient Temp Range 5-50 °C (41-122°F)
- Air Inlet Pressure 7-10 bar g (101.5-145 psi g)
- Nitrogen Outlet Pressure* Up to 9 bar g (130.5 psi g)
- Air Inlet Requirement
- ISO: 8573.1:2010 (class 1.4.1)
- Dew-point: +3°c (+37°F)
- Particulate: <0.01 micron
- Electrical Supply 230v a.c. / 1ph / 50-60Hz (0.1Kw)
- 115v a.c. / 1ph / 50-60Hz (0.1Kw)
- Socket Inlet Gland Entry (MCB) 10A
- Communications Relay / USB
- Inlet / Outlet Connections 1” BSPP x 2
- Integrated Carbon Tower
- Air Inlet Moisture Protection & Recovery System
- Nitrogen Vent on Oxygen above set limits
- Proportional Flow Control Valve
- Flow-Meter DN20 including Totaliser (indication on touch screen)
- Audio / Visual Alarm
- Remote Control via ‘Sm@rt Server’ secured connection (LAN or Ethernet)
- Additional Digital Output Module – remote signals
- UPS Siemens – Uniterrupted Power Supply
- Upgrade to 7” colour Touch Screen PLC
- Multi-PSA systems available up to 5,000m³/hr – Contact Noblegen
