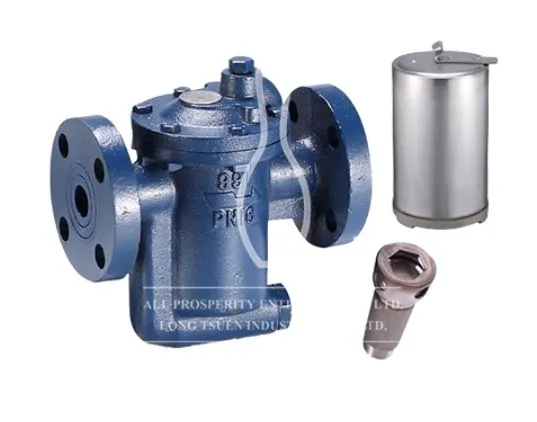

Model 990 - Inverted Bucket Steam Trap
The 990 Series Inverted Bucket Steam Trap by All Prosperity Enterprise Co., Ltd. is designed to ensure efficient operation under a variety of industrial conditions. Engineered with a robust cast iron construction, the steam trap is available in sizes ranging from 1/2 to 2 inches for screwed ends and 1/2 to 3 inches for flanged ends. It is compatible with NPT and BSPT screwed ends and PN, JIS, ANSI flanged ends, making it versatile for various piping standards. The steam trap can withstand a maximum operating pressure of 17 kg/cm² and operate at temperatures up to 230°C. Compliant with ISO 9001:2008 standards and certified by multiple authorities including SGS, the steam trap ensures reliable performance and longevity. The product also holds a Manufacture License of Special Equipment (PN4.0 Mpa) and a patent (No. ZL 2009 2 0003337.2). The availability of optional parts offers customizable solutions tailored to specific industrial needs.Most popular related searches
Specification
Size (Screwed End): 1/2"-2" (DN15- DN50)
Size (Flanged End): 1/2" - 3" (DN15 - DN80)
Connection End
NPT and BSPT Screwed End
PN/JIS/ANSI Flanged End
Maximum Operating Pressure: 17 KGS
Working Temperature: 230°C
NO.IB990 Series DIMENSIONS (MM). MOP(KG/CM2). WT(KG)
