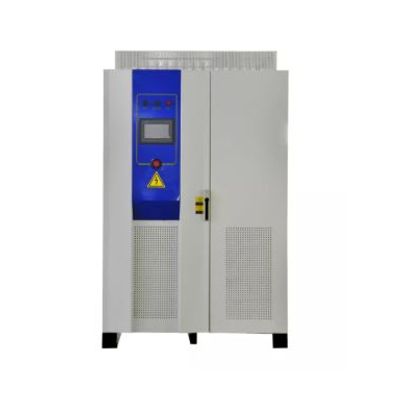

SINJI - Model BNSX-150KS -Inverter for Flow Battery

FromShanghai SINJI Electrical Technology Co., LTD.

SHARE

Flow Battery 150kW PCS (including DCDC) + Isolation Transformer Vanadium Battery Energy Storage System converter VRFB bidirectional converter. Most of the inverters supporting vanadium power are customized boost products. The inverters we display are mostly inverter products supporting our company`s vanadium power projects. The actual needs of customers need to be customized according to the actual situation of the project.

Most popular related searches

battery energy storage system

power supply system

battery energy storage

energy storage system

isolation transformer

vanadium energy storage system

vanadium energy storage

battery storage system

Equipment Power : 150kW
Power grid measurement indicators
Power supply system : Three-phase four-wire
Grid voltage range : AC 380V±15%
Grid frequency range : 50Hz±5%
Current distortion : THDi≤4%
DC side indicators
DC charging voltage range : DC 0V-400V
DC discharge voltage range : DC 210V-400V
DC/DC Rated Power : 150KW
Rated Current : ±600A
DC current ripple : ≤3%
System performance
Maximum conversion efficiency : 92%（After DC/DC, DC/AC, isolation transformer）
Protective function : Reverse polarity protection, short circuit, islanding effect, overheating, overload, ground fault, etc.
Display and communication :
Display function : LCD touch screen
Communication function : RS 485/Ethernet port
Usage environment
Working environment : The ambient temperature is -20℃-45℃, and the relative humidity is 0-95%. It can work 24 hours a day.
Protection level : IP21 (indoor)
Cooling method : Fan forced air cooling
Altitude : ≤5000m (over 2000m, derating is required)
Other performance indicators
Compressive strength : AC1500V/1min/10mA
Insulation resistance : ≥100MΩ
Noise : ≤65dB(A)
Size（W*D*H） : 1000*1000*1900mm
