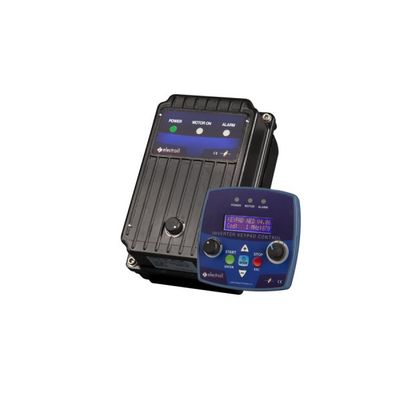

ELECTROIL - Model IMTI1.5 M - Inverter for Industrial Motors with Control and Programming Panel
FromELECTROIL s.r.l.
Inverters for industrial motors offer wide regulation possibilities and a great variety of possible applications, facilitated by the possibility of remotely controlling all the calibration and operating parameters of the motor. Optimization of industrial processes, reduction of the noise generated by the engine and greater longevity of its components are among the advantages deriving from the use of the inverter integrated in the motor-inverter system.
Most popular related searches
- Onboard motor Inverters with single-phase input and three-phase output, with maximum power up to 1.5 kW
- Very silent working, specific for domestic environments
- Universal fixing to adapt to various motor types
- Compacts and robust, with optimal cooling thanks to the the forced ventilation by the motor fan
- Special treatment anti-corrosive on the surface, and high protection grade (IP55)
- Potentiometer with wheel, for a rapid motor speed regulation
- Start and Stop remote commands in both rotation directions
- Suitable to work in group through an RS485 cable with MODBUS communication protocol
- KEYPAD allow to control the inverter up to 30 meters in free environment
- Robust with high protection grade (IP55)
- Functions menu simple and intuitive, with parameters written in full text
- Potentiometer with wheel, for a rapid motor speed regulation
- Control and programming panel with LCD dasplay
- When is powered the inverter can communicate with the keypad through BlueConnect system, otherwise it can communicate with USB cable
- Single-phase inverter voltage supply 1 x 230V +/-10%
- Three-phase inverter voltage output 3x (100-244)V
- Maximum motor power up to 1.5 kW
- Maximum output current 7A
- Nominal motor frequency 50 - 80 Hz
- Communication with other inverters by RS485 and Modbus communication system
